| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
133,020 pcs
|
133020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

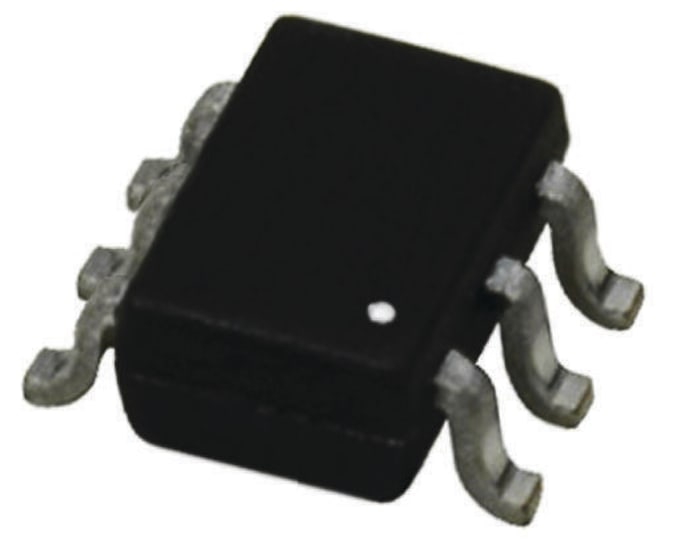

The BCM857BS,115 is a dual PNP matched pair bipolar junction transistor from Nexperia USA Inc. It features a collector-emitter voltage rating of 45 V and a continuous collector current of 100 mA. The device offers a minimum DC current gain (hFE) of 200 at 2 mA collector current and 5 V collector-emitter voltage, ensuring consistent amplification in matched pair applications.
With a transition frequency of 175 MHz and a maximum collector-emitter saturation voltage of 400 mV at 5 mA base current and 100 mA collector current, this transistor is suitable for low-power switching and amplification circuits. The maximum power dissipation is 300 mW, and the junction temperature can reach up to 150°C.
The transistor is supplied in a surface-mount 6-TSSOP package (also compatible with SC-88 and SOT-363), making it ideal for compact PCB designs. The matched pair configuration provides improved thermal tracking and parameter matching for differential amplifier stages and other precision analog circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.76 | $0.76 |
| 10+ | $0.52 | $0.52 |
| 100+ | $0.33 | $0.33 |
| 500+ | $0.20 | $0.20 |
| 1,000+ | $0.15 | $0.15 |
| 3,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage (VCEO) is 45 V.
The maximum collector current is 100 mA.
It is available in a surface-mount 6-TSSOP package (also compatible with SC-88 and SOT-363).
The maximum junction temperature is 150°C.
The part is listed as RoHS3 Compliant, though this status is unverified.
