| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

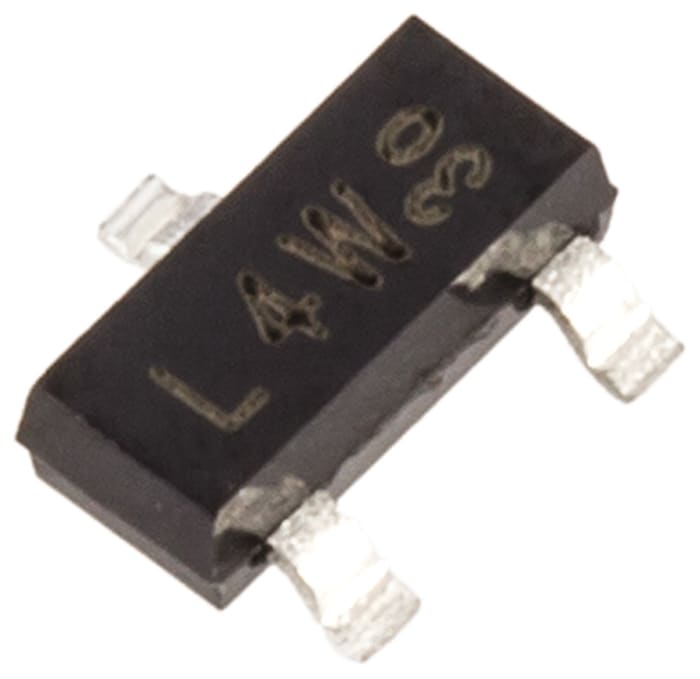

The BC860B,215 is a PNP general purpose bipolar junction transistor manufactured by Nexperia. It is designed for low voltage and low current applications, with a maximum collector-emitter voltage of 45V and a maximum collector current of 100mA. The transistor offers a DC current gain (hFE) ranging from 220 to 475 at 2mA collector current, ensuring good amplification performance. With a gain bandwidth product of 100MHz, it is suitable for audio frequency applications up to 100MHz. The device is housed in a surface-mount SOT-23-3 package (also known as TO-236AB), making it ideal for compact PCB designs. The operating junction temperature range is -65°C to +150°C, allowing use in a wide range of environments. The BC860B,215 is the PNP complement to the NPN BC849 and BC850 series. Typical applications include low noise input stages of audio frequency equipment, general purpose switching, and amplification in portable and battery-powered devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 10+ | $0.12 | $0.12 |
| 100+ | $0.07 | $0.07 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.04 | $0.04 |
| 3,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) is 45V.
The BC860B,215 is available in a surface-mount SOT-23-3 package (also known as TO-236AB).
The operating junction temperature range is -65°C to +150°C.
The current data indicates RoHS3 compliance, but this is unverified and should be confirmed with the manufacturer.
The DC current gain ranges from 220 to 475 at Ic=2mA, Vce=5V.
The typical gain bandwidth product (fT) is 100MHz.
The VCEsat is 300mV max at Ic=10mA, Ib=0.5mA, and 650mV max at Ic=100mA, Ib=5mA.
