| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000,000 pcs
|
1000000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q101 Qualification | |
| Ambient Temperature Range (Tamb) | |
| Automotive Grade | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Storage Temperature Range (TSTG) | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |
The BC857AMB,315 is a PNP general-purpose bipolar junction transistor from Nexperia, designed for low-power switching and amplification. It features a maximum collector-emitter voltage of -45V and a maximum collector current of -100mA, making it suitable for a wide range of signal and low-current applications.
The device provides a DC current gain (hFE) of 125 to 250 at VCE = -5V and IC = -2mA, a typical transition frequency of 100MHz, and a maximum VCE(sat) of -300mV at IB = -500µA and IC = -10mA. Power dissipation is rated at 250mW at 25°C ambient, with an operating temperature range of -55°C to +150°C.

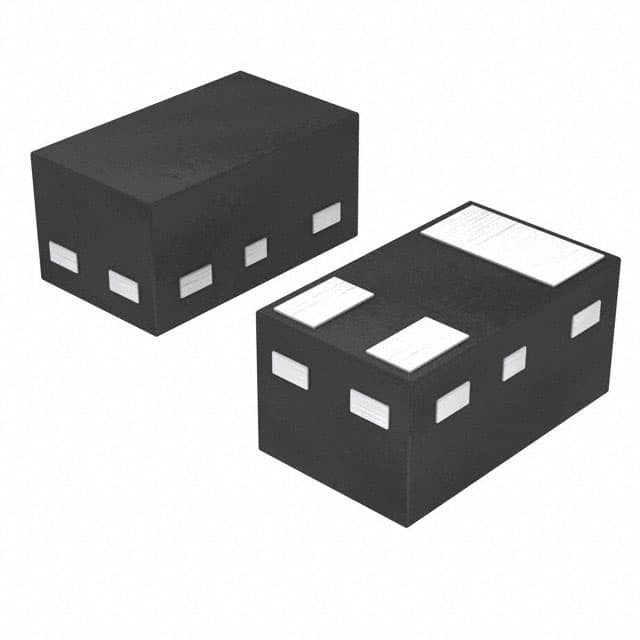

The transistor is housed in a leadless ultra-small SOT883B surface-mount package (also specified as DFN1006B-3), with body dimensions of 1.0 x 0.6 x 0.37mm. This package offers power dissipation comparable to SOT23 while occupying minimal board space. The device is AEC-Q101 qualified for automotive applications, and its typical uses include general-purpose switching and amplification in space-constrained equipment such as mobile devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
| 10+ | $0.17 | $0.17 |
| 100+ | $0.11 | $0.11 |
| 500+ | $0.08 | $0.08 |
| 1,000+ | $0.07 | $0.07 |
| 2,500+ | $0.06 | $0.06 |
| 5,000+ | $0.05 | $0.05 |
| 10,000+ | $0.03 | $0.03 |
| 20,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-45V (open base).
Leadless SOT883B surface-mount package, also referred to as DFN1006B-3.
-55°C to +150°C ambient; storage from -65°C to +150°C.
Listed as RoHS3 compliant, but this status has not been independently verified.
125 to 250 at VCE = -5V, IC = -2mA.
Maximum -300mV at IB = -500µA, IC = -10mA.
250mW at 25°C ambient temperature.
