| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61,020 pcs
|
61020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
28,000 pcs
|
28000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |
BC847BPN is a 45V, 100mA NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. It features low collector capacitance, low collector-emitter saturation voltage, and closely matched current gain. The pair reduces the number of components and board space, and eliminates mutual interference between the transistors. Applications include general-purpose switching and amplification. Key electrical specifications per transistor: collector-emitter breakdown voltage (VCEO) 45V, collector current (IC) 100mA, DC current gain (hFE) 200-450 at VCE=5V, IC=2mA, and transition frequency (ft) 100MHz. The transistor is rated for operating temperature from -65°C to 150°C and maximum junction temperature 150°C. Marketed in a 6-TSSOP (SOT363) package with body dimensions 2.1mm x 1.25mm x 0.95mm and 0.65mm lead pitch. The device is RoHS3 compliant and has MSL 1 (Unlimited) per available data.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.06 | $0.06 |
| 1,000+ | $0.06 | $0.06 |
| 2,500+ | $0.05 | $0.05 |
| 5,000+ | $0.04 | $0.04 |
| 10,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
45 V (open base, absolute maximum rating)
100 mA (IC), 200 mA peak (ICM)
200-450 at VCE = 5 V, IC = 2 mA, Tamb = 25 °C

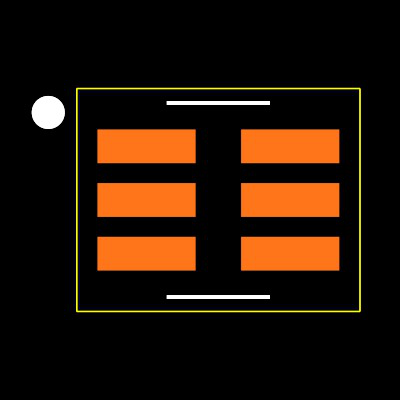

6-TSSOP (SOT363) surface-mount, body dimensions 2.1 mm x 1.25 mm x 0.95 mm
-65 °C to 150 °C
RoHS3 Compliant (unverified, low confidence)
Surface Mount
