BC847BPN,125

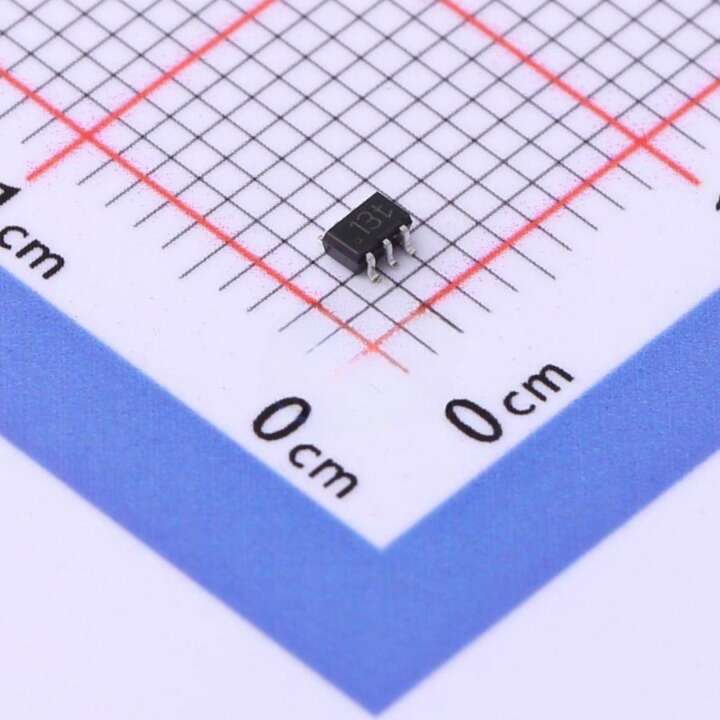

The BC847BPN is a dual NPN/PNP general-purpose transistor array from Nexperia, housed in a compact SOT363 (SC-88) surface-mount package. This device integrates two complementary transistors in a single 6-pin package, offering reduced board space and improved component matching. Each transistor features a maximum collector-emitter voltage (VCEO) of 45 V and a collector current (IC) rating of 100 mA. The DC current gain (hFE) is specified between 200 and 450 at VCE = 5 V and IC = 2 mA, ensuring consistent amplification performance. The collector-emitter saturation voltage is typically 300 mV at IC = 100 mA and IB = 5 mA, enabling efficient low-voltage switching. With a transition frequency (ft) of 100 MHz, these transistors are suitable for general-purpose switching and amplification applications up to medium frequencies. The device is rated for a maximum power dissipation of 300 mW at 25°C ambient temperature. The SOT363 package features a 0.65 mm lead pitch and compact body dimensions of 2.1 mm x 1.25 mm x 0.95 mm, making it ideal for space-constrained designs. The complementary pair configuration eliminates mutual interference between the two transistors and simplifies PCB layout for push-pull and differential amplifier stages.
