| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,948,020 pcs
|
4948020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

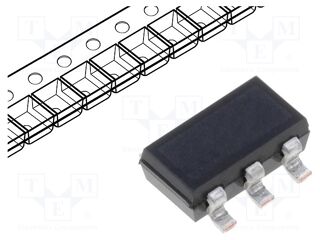

The BC846BPN is a 65V, 100mA NPN/PNP general-purpose transistor pair from Nexperia, housed in a very small SOT363 (SC-88) surface-mount plastic package. It integrates one NPN and one PNP transistor in a single package, reducing board space and component count while ensuring no mutual interference between the transistors.
Key electrical specifications include a collector-emitter voltage (VCEO) of 65V, collector current (IC) of 100mA, and DC current gain (hFE) of 200-450 for the NPN and 200-450 for the PNP at 2mA, 5V. The transistor pair features low collector capacitance and low collector-emitter saturation voltage (300mV max at 100mA). It is designed for general-purpose switching and amplification applications.
The device is offered in a 6-TSSOP package with a 0.65mm pitch, suitable for automated assembly. The operating junction temperature range is up to 150°C, with a power dissipation of 300mW.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.06 | $0.06 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage (VCEO) is 65V, collector-base voltage (VCBO) is 80V, and emitter-base voltage (VEBO) is 6V.
It is available in 6-TSSOP, SC-88, and SOT-363 packages.
The junction operating temperature is up to 150°C.
It is listed as RoHS3 compliant, but this is unverified.
The hFE for the NPN transistor is 200 minimum, 300 typical, and 450 maximum at VCE=5V, IC=2mA.
The maximum collector current (IC) is 100mA, with a peak of 200mA.
The transition frequency (fT) is 100 MHz.
