| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
91,020 pcs
|
91020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Pins | |
| Storage Temperature | |
| Tape & Reel | |
| Transistor Type |

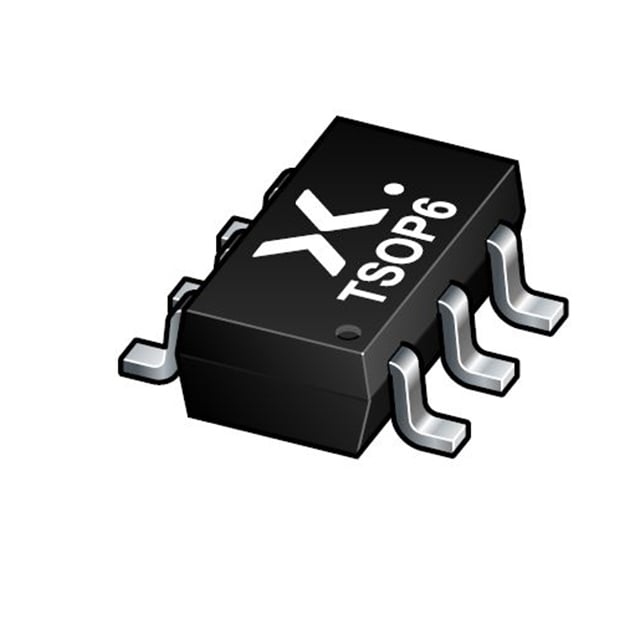

The BC817DS-QX is a general purpose NPN/NPN double bipolar transistor from Nexperia, housed in a compact SOT457 (SC-74) surface-mount package. It integrates two matched NPN transistors in a single 6-pin TSOP6 package, reducing component count and simplifying PCB assembly.
Electrical specifications include a collector-emitter breakdown voltage of 45 V, a maximum continuous collector current of 500 mA, and a DC current gain (hFE) range of 160 to 400 at 100 mA. The device can handle peak collector currents up to 1 A under pulsed conditions. Power dissipation is rated at 370 mW per transistor and 600 mW for the entire device when mounted on a standard FR4 PCB with a 1 cm² collector pad.
The BC817DS-QX is qualified to AEC-Q101 and recommended for automotive applications, making it suitable for use in harsh environments. The device operates over a wide ambient temperature range from -65°C to 150°C and has a moisture sensitivity level of MSL 1 (unlimited floor life). Typical applications include general purpose switching and amplification circuits where two transistors are needed in a compact footprint.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.28 | $0.28 |
| 100+ | $0.17 | $0.17 |
| 500+ | $0.13 | $0.13 |
| 1,000+ | $0.12 | $0.12 |
| 3,000+ | $0.10 | $0.10 |
| 6,000+ | $0.09 | $0.09 |
| 9,000+ | $0.08 | $0.08 |
| 15,000+ | $0.08 | $0.08 |
| 21,000+ | $0.08 | $0.08 |
| 30,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum VCEO is 45 V.
SOT457 (SC-74, TSOP6) surface-mount package with 6 leads.
Ambient temperature range is -65°C to 150°C, with maximum junction temperature 150°C.
Listed as RoHS3 compliant, but this status is unverified and should be confirmed.
Continuous collector current is 500 mA, peak collector current 1 A.
hFE ranges from 160 to 400 at VCE = 1 V, IC = 100 mA.
Yes, it is AEC-Q101 qualified and recommended for automotive use.
