| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
421,020 pcs
|
421020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
372,001 pcs
|
372001 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
33,650 pcs
|
33650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,880 pcs
|
1880 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance (Typical @ 1V, 1MHz) | |
| Capacitance @ Vr, F | |
| Current | |
| Forward Current (Max) | |
| Forward Voltage (VF) (Maximum @ IF=0.1 mA, pulsed, Tamb=25 °C) | |
| Forward Voltage (VF) (Maximum @ IF=1 mA, pulsed, Tamb=25 °C) | |
| Forward Voltage (VF) (Maximum @ IF=10 mA, pulsed, Tamb=25 °C) | |
| Forward Voltage (VF) (Maximum @ IF=30 mA, pulsed, Tamb=25 °C) | |
| Halogen Free | |
| Industrial Grade | |
| Junction Temperature Max | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power Dissipation (Max @ Tamb 25°C) | |
| Repetitive Peak Reverse Voltage | |
| SVHC Present | |
| Speed | |
| Speed Category | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Thermal Resistance from Junction to Ambient | |
| Thermal Resistance from Junction to Solder Point | |
| Voltage |
The BAT54J is a planar Schottky barrier single diode from Nexperia, featuring an integrated guard ring for stress protection. It offers low forward voltage (240 mV typical at 0.1 mA, 320 mV at 1 mA, 400 mV at 10 mA and 30 mA) and low capacitance (10 pF typical at 1 V, 1 MHz). The device is designed for high-speed switching applications such as voltage clamping, line termination, and reverse polarity protection.

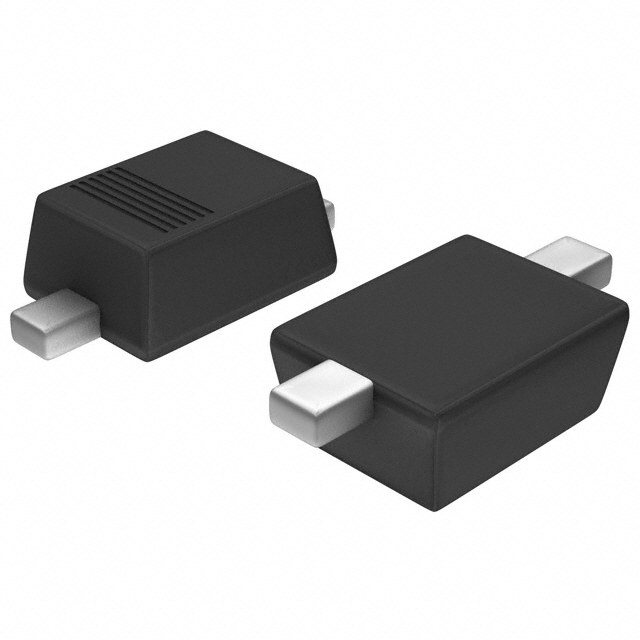

Encapsulated in a very small and flat lead SOD323F (SC-90) surface-mount plastic package, the BAT54J provides excellent coplanarity and improved thermal behavior. It is rated for a maximum reverse voltage of 30 V and a forward current of 200 mA. The diode can operate over a wide temperature range from -65°C to 150°C, with a maximum junction temperature of 150°C.
Thermal characteristics include a maximum power dissipation of 550 mW at 25°C ambient when mounted on an FR4 PCB with a 1 cm² cathode pad. The thermal resistance from junction to ambient is 230 K/W, and from junction to solder point is 55 K/W. These specifications make the BAT54J suitable for compact, low-power designs requiring efficient rectification or clamping.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.04 | $0.04 |
| 6,000+ | $0.04 | $0.04 |
| 9,000+ | $0.04 | $0.04 |
| 15,000+ | $0.03 | $0.03 |
| 21,000+ | $0.03 | $0.03 |
| 30,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 V.
200 mA.
320 mV maximum at IF=1 mA, pulsed, Tamb=25°C.
SC-90 (SOD323F) surface mount package.
-65°C to 150°C.
10 pF at VR=1V, f=1MHz.
550 mW at Tamb=25°C on FR4 PCB with 1 cm² cathode pad.
