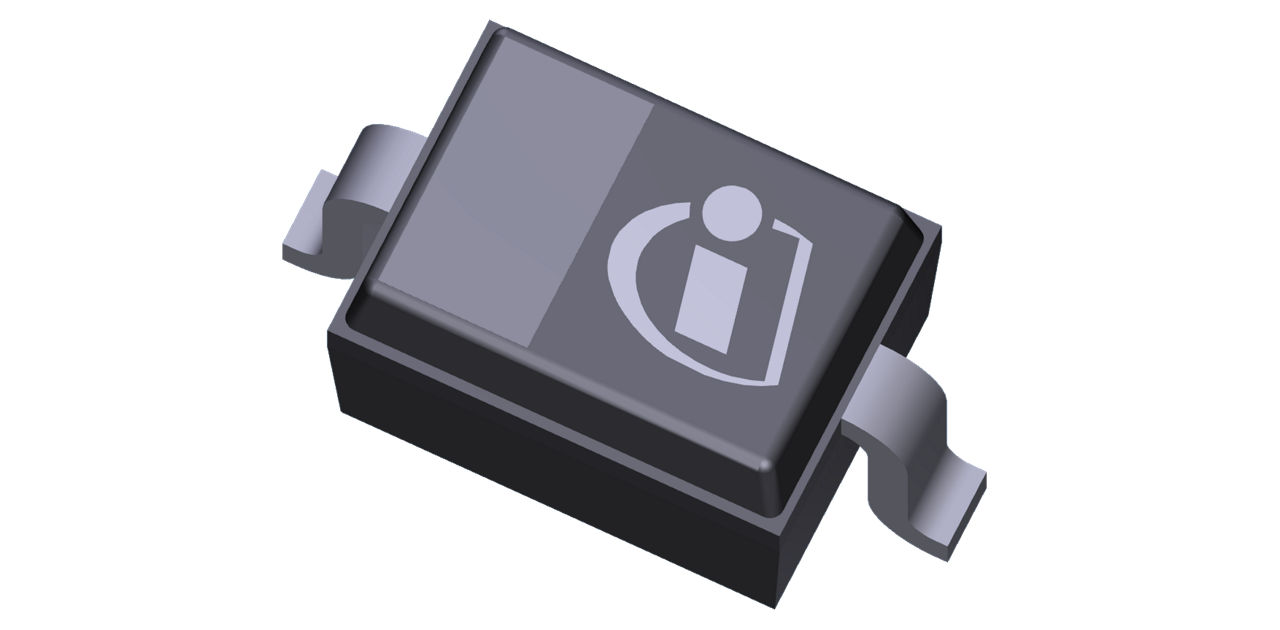

BAT165E6327HTSA1 The Infineon BAT165E6327HTSA1 is an AF Schottky diode designed for low-loss, fast-recovery applications. It features a 40V reverse voltage and 750mA forward current.
Mfr Part #:

BAT165E6327HTSA1

Available from 5 distributors
Mfr Name: Infineon
Infineon
The Infineon BAT165E6327HTSA1 is an AF Schottky diode designed for low-loss, fast-recovery applications. It features a 40V reverse voltage and 750mA forward current.
✓ Total Stock: 309,205 pcs
$ Price Range: $0.63

BAT165E6327HTSA1 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BAT165E6327HTSA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Junction Temperature
Storage Temperature
View Similar Products (0)

BAT165E6327HTSA1 Description

Short technical summary and product information.

The Infineon BAT165E6327HTSA1 is a medium power AF Schottky diode. It is designed for applications requiring low-loss and fast-recovery characteristics, such as meter protection, bias isolation, and clamping circuits.



Key electrical specifications include a maximum reverse voltage of 40V and a continuous forward current rating of 750mA. The diode exhibits a typical forward voltage of 0.23V at 10mA and 0.44V at 750mA. Its capacitance at 10V and 1MHz is typically 8.4pF.



This device is housed in a compact SOD323 package, suitable for surface-mount applications. It is qualified according to AEC-Q101 standards and comes in a Pb-free, RoHS-compliant package.



The BAT165 is suitable for various applications including general rectification, reverse polarity protection, and voltage clamping where efficient switching and low forward voltage drop are critical.

BAT165E6327HTSA1 Quick Information

Product Type: Schottky Diode
Canonical Name: Infineon BAT165 AF Schottky Diode
Subcategory: Rectifier

BAT165E6327HTSA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-free

BAT165E6327HTSA1 Estimated Pricing

Qty Low High
1+ $0.63 $0.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

BAT165E6327HTSA1 Features

  • 40V maximum reverse voltage rating.
  • 750mA maximum forward current.
  • Low forward voltage drop.
  • Fast recovery time.
  • SOD323 surface mount package.

BAT165E6327HTSA1 Applications

  • Ideal for meter protection circuits.
  • Used for bias isolation applications.
  • Suitable for voltage clamping.
  • Low-loss rectification needs.
  • Fast switching applications.

BAT165E6327HTSA1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the BAT165E6327HTSA1?

The maximum reverse voltage is 40V.

What is the continuous forward current rating of the BAT165E6327HTSA1?

The continuous forward current rating is 750mA.

What is the typical forward voltage at 10mA for this Schottky diode?

The typical forward voltage at 10mA is 0.23V.

What is the diode capacitance at 10V and 1MHz?

The typical diode capacitance at 10V and 1MHz is 8.4pF, with a maximum of 12pF.

What package type is the BAT165E6327HTSA1 supplied in?

The BAT165E6327HTSA1 is supplied in a SOD323 package.

Is the BAT165E6327HTSA1 RoHS compliant?

Yes, the BAT165E6327HTSA1 is Pb-free and RoHS compliant.
