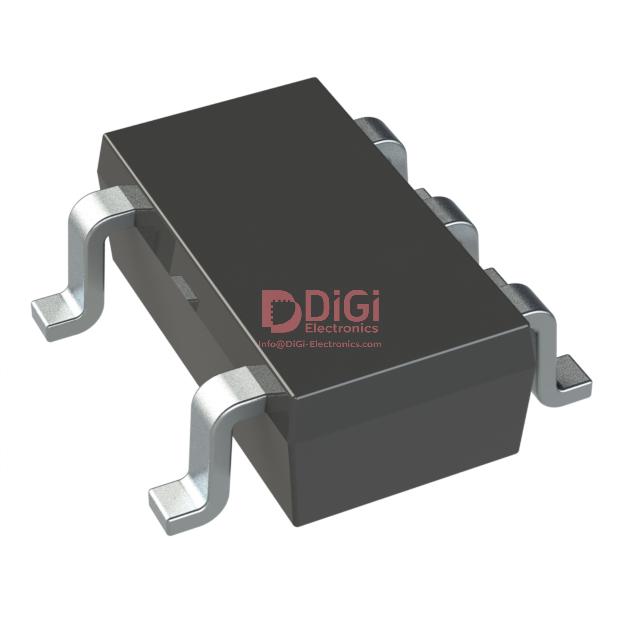

TCR2EF33LMCT The Toshiba TCR2EF33LMCT is a 200 mA CMOS low dropout regulator with a fixed 3.3V output. It offers low dropout voltage and fast load transient response.
Mfr Part #:

TCR2EF33LMCT

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TCR2EF33LMCT is a 200 mA CMOS low dropout regulator with a fixed 3.3V output. It offers low dropout voltage and fast load transient response.
✓ Total Stock: 645,714 pcs
$ Price Range: $0.28

TCR2EF33LMCT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
645,714 pcs
On Request
645714 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCR2EF33LMCT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Input Capacitance
Input Voltage
Junction Temperature
Lead Style
Medical Grade
Military Grade
Mounting Type
Output Current
Output Voltage
SVHC Present
Storage Temperature
Tape & Reel
View Similar Products (0)

TCR2EF33LMCT Description

Short technical summary and product information.

The Toshiba TCR2EF33LMCT is a CMOS single output voltage regulator designed for sensitive power supply applications. It features a low dropout voltage, low output noise, and fast load transient response, making it suitable for analog and RF circuits.



This regulator provides a fixed output voltage of 3.3V and can drive up to 200 mA of current. Key electrical characteristics include a typical dropout voltage of 180 mV at 150 mA output, low output noise voltage of 35 μVrms, and a fast load transient response of ±60 mV. It also includes overcurrent protection and an auto-discharge function.



The TCR2EF33LMCT is available in small packages, including the ESV (SOT-553) measuring 1.6 mm x 1.6 mm x 0.55 mm, and the SMV (SOT-25) measuring 2.8 mm x 2.9 mm x 1.1 mm. It supports the use of ceramic capacitors for input and output, with recommended values of 0.1 μF for CIN and 1.0 μF for COUT.

TCR2EF33LMCT Quick Information

Product Type: CMOS Low Dropout Regulator
Series: TCR2EF
Canonical Name: TCR2EF33LMCT CMOS Low Dropout Regulator
Subcategory: Low Dropout (LDO) Regulator

TCR2EF33LMCT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TCR2EF33LMCT Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

TCR2EF33LMCT Features

  • 200 mA CMOS low dropout regulator
  • Fixed 3.3 V output voltage
  • Low dropout voltage and noise
  • Fast load transient response
  • Available in SOT-553 and SOT-25 packages

TCR2EF33LMCT Applications

  • Suitable for sensitive power supplies
  • Ideal for analog applications
  • Used in RF circuits
  • Provides stable voltage regulation

TCR2EF33LMCT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TCR2EF33LMCT?

The TCR2EF33LMCT has a fixed output voltage of 3.3 V.

What is the maximum output current for the TCR2EF33LMCT?

The TCR2EF33LMCT can supply a maximum output current of 200 mA.

What is the dropout voltage of the TCR2EF33LMCT?

The dropout voltage is a maximum of 0.5 V at 200 mA output. Typically, it is 180 mV at 150 mA for a 2.5 V output, and 150 mV at 150 mA for a 3.0 V output.

What are the package options for the TCR2EF33LMCT?

The TCR2EF33LMCT is available in SOT-553 and SOT-25 packages.

What is the typical output noise voltage?

The typical output noise voltage is 35 μVrms for a 2.5 V output.

What is the typical load transient response?

The typical load transient response is ±60 mV when the output current changes from 1 mA to 150 mA with a 1.0 μF output capacitor.
