| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,899 pcs
|
4899 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Style | |
| Termination Style |

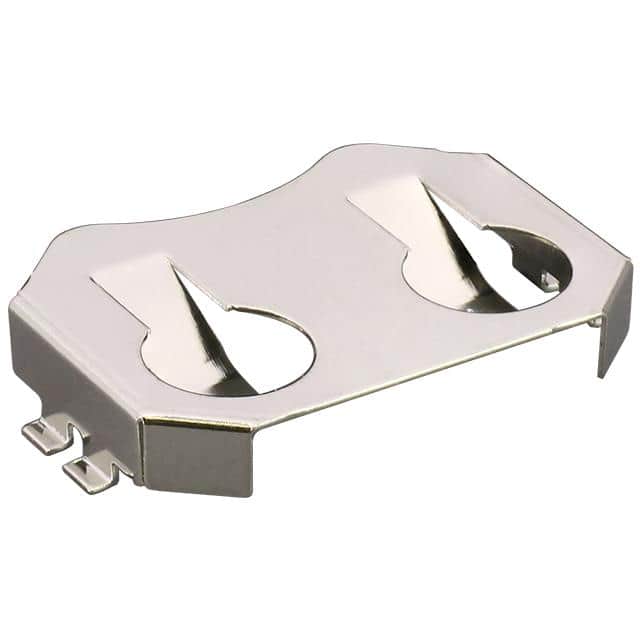

The Linx Technologies BAT-HLD-001 is a mechanical retainer designed to securely hold a single 20.0mm diameter coin cell battery on a printed circuit board. As a retainer-style holder, it provides a reliable mounting solution for coin cells used in compact electronic devices.
The retainer supports battery series 2025 and 2032, making it suitable for a range of common battery chemistries. Its SMD (SMT) tab termination style enables direct surface mount soldering, streamlining the assembly process. The component has a low profile with a height above the board of just 0.165" (4.20mm), conserving space in dense PCB layouts.
Designed for PCB surface mount applications, this retainer is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. The part number BAT-HLD-001 is the manufacturer's designation from Linx Technologies Inc.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 500+ | $0.35 | $0.35 |
| 1,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The retainer fits a single coin cell of 20.0mm diameter, and supports battery series 2025 and 2032.
The BAT-HLD-001 is a PCB surface mount retainer with SMD (SMT) tab termination.
The height above board is 0.165" (4.20mm).
It is listed as RoHS3 Compliant, however this status is unverified and should be confirmed with the manufacturer.
