| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
313,020 pcs
|
313020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Diode Capacitance | |
| Diode Configuration | |
| Forward Current | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Reverse Voltage | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

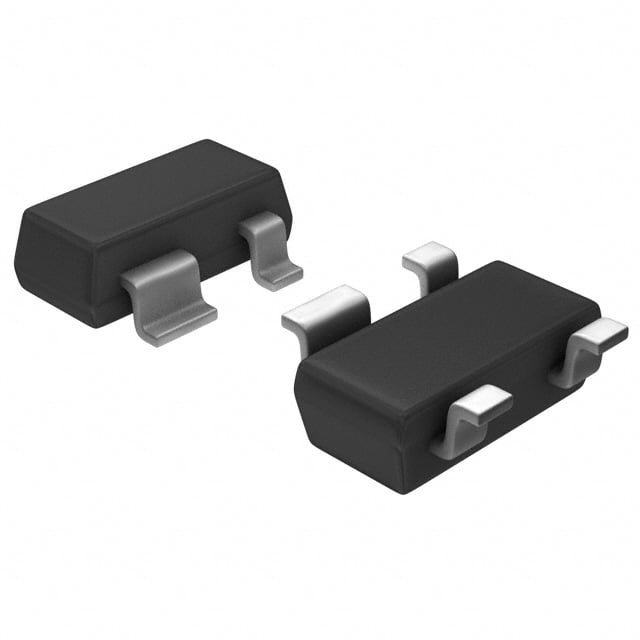

The BAS70-07-QR is a general-purpose dual Schottky diode from Nexperia, housed in a small SOT143B surface-mount plastic package. It contains two independent Schottky diodes with high switching speed, low leakage current, high breakdown voltage, and low capacitance.
Key electrical specifications include a maximum reverse voltage of 70V, a maximum forward current of 70mA, and a forward voltage of 410mV at 1mA, 750mV at 10mA, and 1V at 15mA. Reverse leakage current is 100nA at 50V and 10µA at 70V. Diode capacitance is 2pF maximum at 0V reverse bias. The device is qualified to AEC-Q101 and recommended for automotive applications.
The SOT143B package measures 2.9mm x 1.3mm x 1.0mm with a lead pitch of 1.9mm. Thermal resistance from junction to ambient is 500K/W. Operating temperature range is -65°C to 150°C. Typical applications include ultra high-speed switching and voltage clamping.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.29 | $0.29 |
| 100+ | $0.18 | $0.18 |
| 500+ | $0.12 | $0.12 |
| 1,000+ | $0.10 | $0.10 |
| 3,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 70V.
The maximum forward current is 70mA.
The maximum forward voltage at 1mA is 410mV.
It is available in a SOT143B surface-mount package.
The maximum diode capacitance is 2pF at 0V reverse bias and 1MHz.
The operating temperature range is -65°C to 150°C.
Yes, it is AEC-Q101 qualified and recommended for automotive applications.
