BAS40W,115 The Nexperia BAS40W,115 is a Schottky switching diode designed for SMD mounting. It features a maximum off-state voltage of 40V and a load current of 0.12A.
Mfr Part #:

BAS40W,115

Available from 1 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia BAS40W,115 is a Schottky switching diode designed for SMD mounting. It features a maximum off-state voltage of 40V and a load current of 0.12A.
✓ Total Stock: 7,020 pcs
$ Price Range: $1.26

BAS40W,115 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,020 pcs
On Request
7020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BAS40W,115 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Load Current
Medical Grade
Military Grade
Mounting Type
View Similar Products (0)

BAS40W,115 Description

Short technical summary and product information.

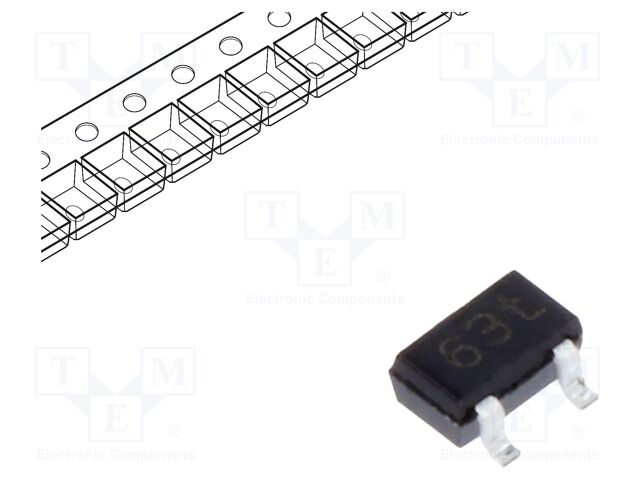

The Nexperia BAS40W,115 is a Schottky switching diode suitable for surface mount applications. It is housed in a SOT323 package and offers a maximum off-state voltage of 40V.



Key electrical characteristics include a load current rating of 0.12A and a maximum forward voltage of 1V. The diode also has a maximum forward impulse current of 0.2A.



This component is supplied on a reel tape, with a standard package quantity of 3000 pieces. Its SMD mounting type makes it ideal for automated assembly processes in various electronic circuits.

BAS40W,115 Quick Information

Product Type: Schottky Switching Diode
Canonical Name: BAS40W,115 Schottky Switching Diode
Subcategory: Schottky Switching Diode

BAS40W,115 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BAS40W,115 Estimated Pricing

Qty Low High
1+ $1.26 $1.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

BAS40W,115 Features

  • Schottky switching diode
  • 40V maximum off-state voltage
  • 0.12A maximum load current
  • 1V maximum forward voltage
  • SOT323 SMD package

BAS40W,115 Applications

  • Suitable for high-speed switching circuits.
  • Used in power supply rectification.
  • Ideal for RF and microwave applications.
  • Applicable in low-voltage electronic protection.
  • Suitable for SMD circuit designs.

BAS40W,115 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the BAS40W,115 diode?

The maximum off-state voltage is 40V.

What is the continuous load current rating of the BAS40W,115?

The load current is 0.12A.

What is the maximum forward voltage of the BAS40W,115 diode?

The maximum forward voltage is 1V.

What package type is the BAS40W,115 diode supplied in?

It is supplied in a SOT323 SMD package.

How is the BAS40W,115 diode packaged for shipping?

The diode is supplied on a reel tape.
