The BAS16GWX is a high-speed switching diode manufactured by Nexperia, designed for applications requiring fast switching and high voltage capability. It is rated for a maximum reverse voltage of 100V and a maximum forward current of 215mA. The diode offers a typical forward voltage of 1.25V at 150mA forward current and a fast reverse recovery time of 4ns maximum, making it suitable for high-speed switching circuits.
With a low capacitance of 1.5pF at 0V reverse bias and 1MHz, the BAS16GWX minimizes signal distortion in high-frequency applications. The reverse leakage current is specified at 0.5µA maximum at 80V reverse voltage. The diode is qualified to AEC-Q101, ensuring reliability for automotive electronics.
The device is housed in a small SOD-123 surface-mount package, allowing for compact PCB designs. It operates over a wide temperature range from -55°C to 150°C, with thermal resistance junction-to-ambient of 350K/W on a standard FR4 footprint and 210K/W with an enhanced 1cm² cathode pad. Power dissipation is rated at 357mW (standard footprint) and 600mW (with larger cathode pad).
The maximum reverse voltage is 100V.
The maximum forward current is 215mA.
The typical forward voltage is 1.25V at a forward current of 150mA.
The maximum reverse recovery time is 4ns.

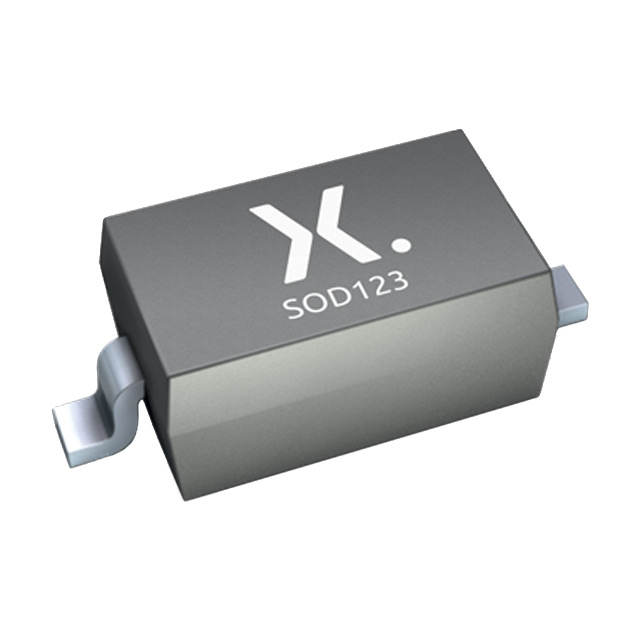

The BAS16GWX is available in a SOD-123 surface mount package.
The operating temperature range is -55°C to 150°C.
The maximum capacitance is 1.5pF at 0V reverse bias and 1MHz.
