| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72,696 pcs
|
72696 pcs | On Request | 1 | On Request | On Request | 1702+ | On Request | On Request | |
|
35,000 pcs
|
35000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19,000 pcs
|
19000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,077 pcs
|
1077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Phase Difference | |
| Return Loss (Min) | |
| Storage Temperature | |
| Tape & Reel |

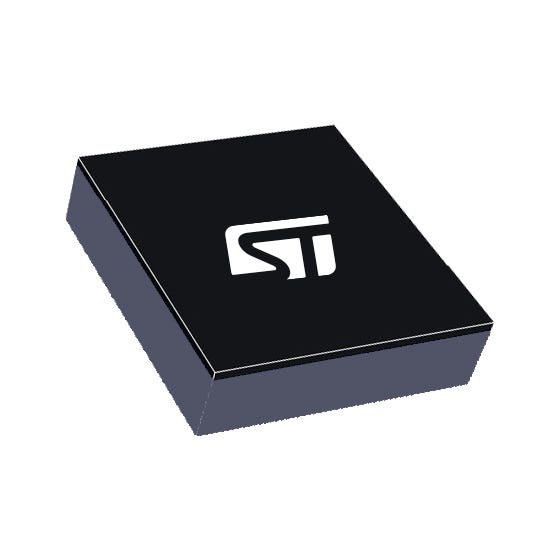

The STMicroelectronics BALF-NRG-01D3 is a balun designed for RF applications, operating within the 2.4GHz to 2.5GHz frequency spectrum. This component features a balanced impedance of 50 Ohms for both input and output ports, ensuring signal integrity.
With a maximum insertion loss of 1.1dB and a minimum return loss of -20dBm, the BALF-NRG-01D3 is engineered for efficient signal transmission. The phase difference is maintained at 7°, critical for balanced signal processing. The device is housed in a 4-WFBGA, FCBGA package, suitable for surface mount assembly.
This balun is suitable for applications requiring precise impedance matching and signal balancing in the specified frequency range. Its surface mount design facilitates integration into compact electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BALF-NRG-01D3 operates in the frequency range of 2.4GHz to 2.5GHz.
The impedance of the BALF-NRG-01D3 is 50 Ohms for both input and output.
The maximum insertion loss for the BALF-NRG-01D3 is 1.1dB.
The phase difference for the BALF-NRG-01D3 is 7 degrees.
The BALF-NRG-01D3 is available in a 4-WFBGA, FCBGA package.
The BALF-NRG-01D3 is a surface mount device.
