| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,000 pcs
|
45000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Phase Difference | |
| Return Loss (Min) | |
| Storage Temperature | |
| Tape & Reel |
The BALF-NRF01E3 from STMicroelectronics is a balun component designed for RF applications operating within the 2.4GHz to 2.54GHz frequency range. This device offers a minimum return loss of 15dB and a maximum insertion loss of 2.2dB, with a typical phase difference of 4 degrees. Its impedance is rated at 50 Ohms.

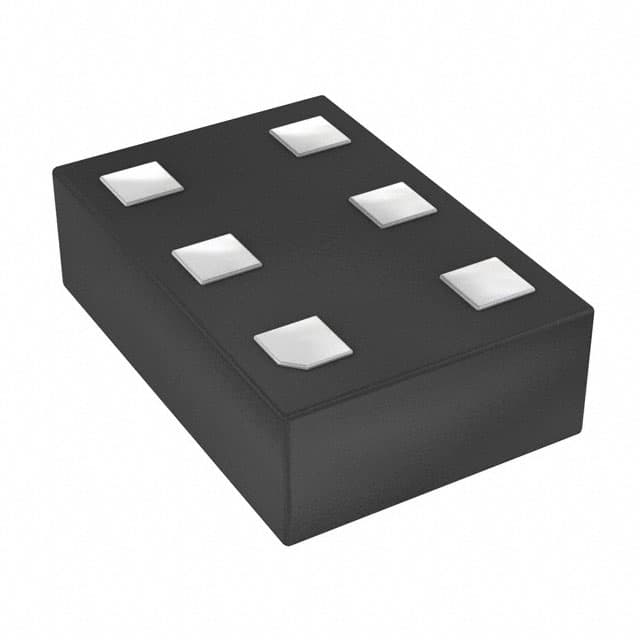

The balun is housed in a compact 6-XFLGA package and is designed for surface mount installation, making it suitable for integration into various electronic designs where space is a consideration.
This component is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended conditions. REACH status is unaffected.
Key electrical characteristics include its frequency range, return loss, insertion loss, phase difference, and impedance, all critical parameters for RF signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BALF-NRF01E3 balun operates from 2.4GHz to 2.54GHz.
The minimum return loss for the BALF-NRF01E3 is 15dB.
The maximum insertion loss for the BALF-NRF01E3 is 2.2dB.
The impedance of the BALF-NRF01E3 is 50 Ohms.
The BALF-NRF01E3 is supplied in a 6-XFLGA package.
The BALF-NRF01E3 is designed for surface mount installation.
The BALF-NRF01E3 is RoHS3 Compliant.
