| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Connector Type | |
| Contact Finish | |
| Dielectric Strength | |
| Durability (Mating Cycles) | |
| Fastening Type | |
| Ingress Protection | |
| Insulation Resistance | |
| Moisture Resistance (Insulation) | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shock | |
| Termination | |
| Thermal Shock Range | |
| Vibration |

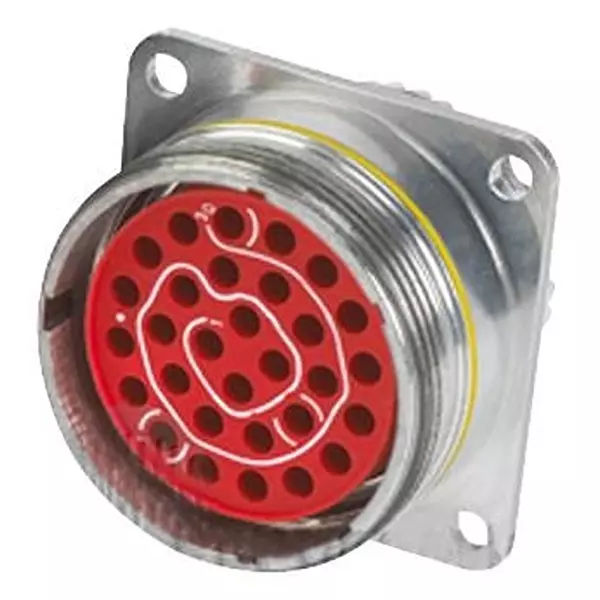

The Cinch BACC63BV20F41PN is a circular connector receptacle qualified to MIL-C-26500 and part of the C48 series. It features 41 male pin contacts with gold finish for reliable signal integrity. The connector uses crimp termination and is designed for panel mounting with a flange. The shell is made of aluminum with a cadmium over nickel finish, providing durability and corrosion resistance. Threaded coupling ensures secure mating. The connector is shielded and environment sealed, suitable for demanding applications. It operates over a temperature range of -55°C to 200°C. Electrical characteristics include a dielectric strength of 1500 VAC RMS and insulation resistance of 5000 MΩ minimum. Mechanical robustness is demonstrated by 20 g sinusoidal vibration and 50 g shock ratings, with a durability of 200 mating cycles.
It has 41 power positions.
Panel mount with a flange.
-55°C to 200°C.
1500 VAC RMS.
5000 MΩ minimum.
200 mating cycles.
