| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Form | |
| Contact Rating @ Voltage | |
| Current Rating | |
| Failure Rate | |
| Height | |
| Illumination | |
| Ingress Protection | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Width |

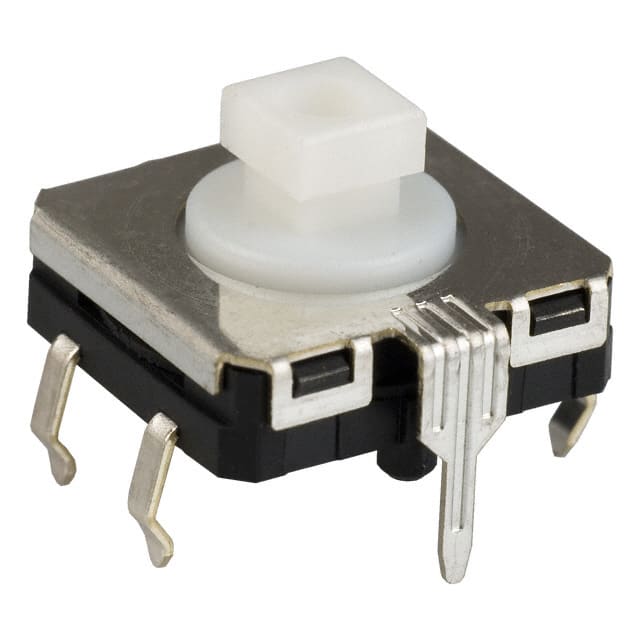

The Omron B3W-4150 is a tactile switch designed for through-hole mounting. It features a durable construction with an IP67 rating, indicating dust-tight and waterproof capabilities.
This switch operates with a SPST-NO (Single Pole Single Throw - Normally Open) circuit configuration. It is designed for applications requiring a specific operating force and has a non-illuminated plunger actuator suitable for cap attachment. The dimensions of the switch are 12mm x 12mm with a stem height of 4.3mm.
Electrically, the B3W-4150 is rated for 0.05A at 24VDC. It has a mechanical life expectancy of 3,000,000 cycles. The operating temperature range is from -25°C to 70°C, making it suitable for a variety of environmental conditions.
Key specifications include a termination style of PC Pin and a mounting type of Through Hole. The switch function is Off-Mom, meaning it is momentary when the button is pressed. This component is part of the B3W series from Omron.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The B3W-4150 tactile switch has a DC voltage rating of 24V.
The operating temperature range for the B3W-4150 is -25°C to 70°C.
The B3W-4150 has an IP67 rating, meaning it is dust-tight and waterproof.
The current rating for the B3W-4150 is 50 mA at 24 VDC.
The B3W-4150 uses through-hole mounting.
The B3W-4150 has a mechanical life of 3,000,000 cycles.
