| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
283 pcs
|
283 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

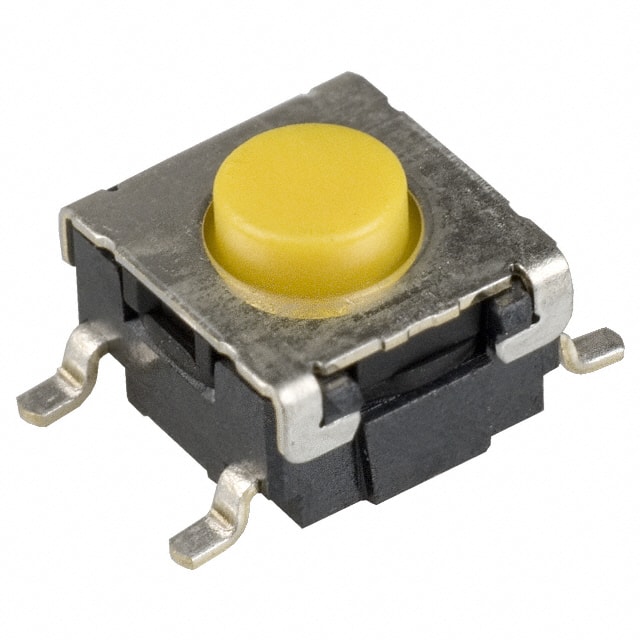

The Omron B3S-1002P is a tactile switch designed for electronic applications requiring a reliable momentary contact. It features a SPST-NO (Single Pole Single Throw - Normally Open) circuit configuration and is rated to handle 0.05A at 24VDC.
This switch has a surface mount termination style with gull wing leads, facilitating automated assembly processes. The actuator height off the PCB is 4.30mm, and it requires an operating force of 230gf. The overall dimensions of the switch are 6.60mm x 6.00mm.
Environmental considerations include a sealed design for enhanced protection, rated IP67 for dust-tightness and waterproofing. It operates within a temperature range of -25°C to 70°C. The B3S-1002P is RoHS3 Compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.05A at 24VDC.
The operating force is 230gf.
The outline dimensions are 6.60mm x 6.00mm.
The mounting type is Surface Mount.
The operating temperature range is -25°C to 70°C.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
