| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | - | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Form | |
| Contact Rating @ Voltage | |
| Failure Rate | |
| Height | |
| Illumination | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style | |
| Width |

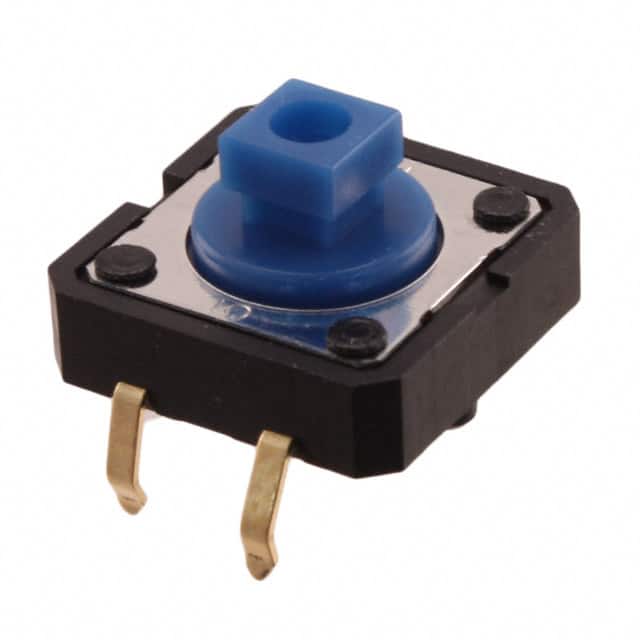

The Omron B3F-5051 is a tactile switch belonging to the B3F series. It features a SPST-NO (Single Pole Single Throw Normally Open) contact form and a momentary switch function (Off-Mom).
This switch is designed for through-hole mounting and has a termination style of PC Pin. It has an actuator height of 7.30mm off the PCB and an operating force of 1.3 N or 130 gf. The dimensions of the switch outline are 12.00mm x 12.00mm, with a height of 3.5mm.
Electrically, the B3F-5051 is rated for a current of 0.05A at 24VDC. It operates within a temperature range of -25°C to 70°C. The switch is non-illuminated and comes in a blue color. It has a rated life of 10,000,000 cycles.
The switch is supplied in Reel, Cut Tape packaging. Its HTS code is 8536509065.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the B3F-5051 is 24VDC.
The operating temperature range is -25°C to 70°C.
The RoHS status is RoHS3 Compliant.
The current rating is 0.05A at 24VDC.
The B3F-5051 switch is designed for Through Hole mounting.
The B3F-5051 has a rated life of 10,000,000 cycles.
