| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
213 pcs
|
213 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Form | |
| Contact Rating @ Voltage | |
| Current Rating | |
| Failure Rate | |
| Height | |
| Illumination | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style | |
| Width |

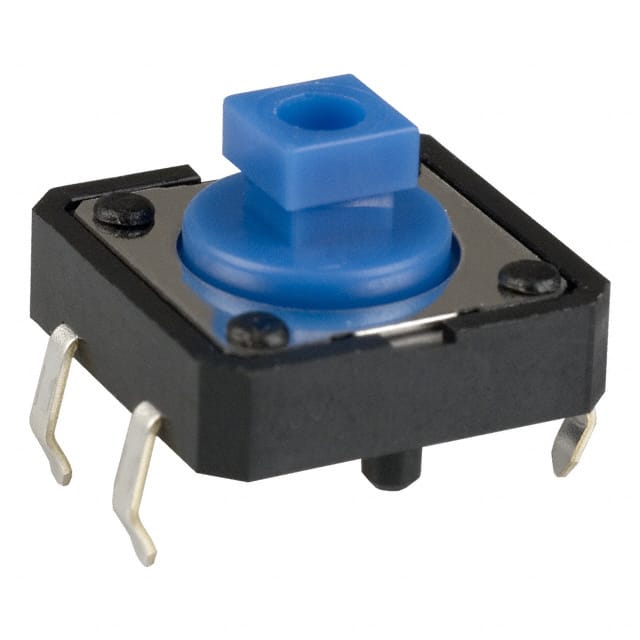

The Omron B3F-5050 is a tactile switch designed for electronic applications requiring a momentary contact. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration, capable of handling a current rating of 0.05A at 24VDC.
This switch is designed for through-hole mounting, ensuring secure placement on printed circuit boards. Its mechanical dimensions include a 12mm by 12mm outline with a stem height of 7.3mm. The actuator type is a plunger suitable for cap attachment, and it is non-illuminated.
With a mechanical life of 10,000,000 cycles, the B3F-5050 offers durability for repetitive use. The operating force is specified at 1.3 N or 130gf. It operates within a temperature range of -25°C to 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating force is 1.3 N.
The voltage rating is 24 VDC.
The contact form is SPST.
It has a through hole mounting style.
It has a life cycle of 10 million cycles.
