| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

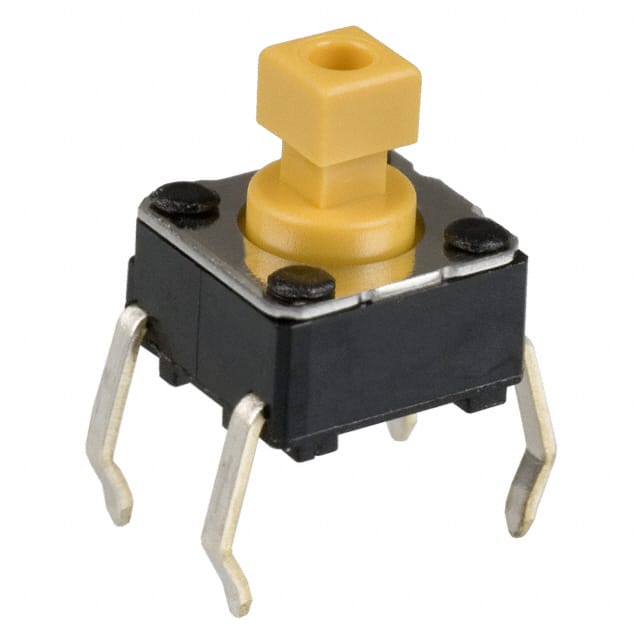

The Omron B3F-1052 is a tactile switch with a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration. It offers a contact rating of 0.05A at 24VDC and an operating force of 150gf. This switch is designed for through-hole mounting and features a vertical actuator height of 7.30mm off the PCB.
With an operating temperature range of -25°C to 70°C, the B3F-1052 is suitable for various environmental conditions. Its mechanical life is rated for 300,000 cycles, ensuring durability in applications. The switch has a compact outline of 6.00mm x 6.00mm and a switch travel of 0.25mm.
This non-illuminated tactile switch is RoHS3 compliant and REACH unaffected, making it suitable for a wide range of electronic designs. Its PC pin termination style facilitates easy integration into circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.05A at 24VDC.
The operating temperature range is -25°C to 70°C.
The RoHS status is ROHS3 Compliant.
It is a through-hole mounted switch.
The mechanical life is 300,000 cycles.
The operating force is 150gf.
