| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

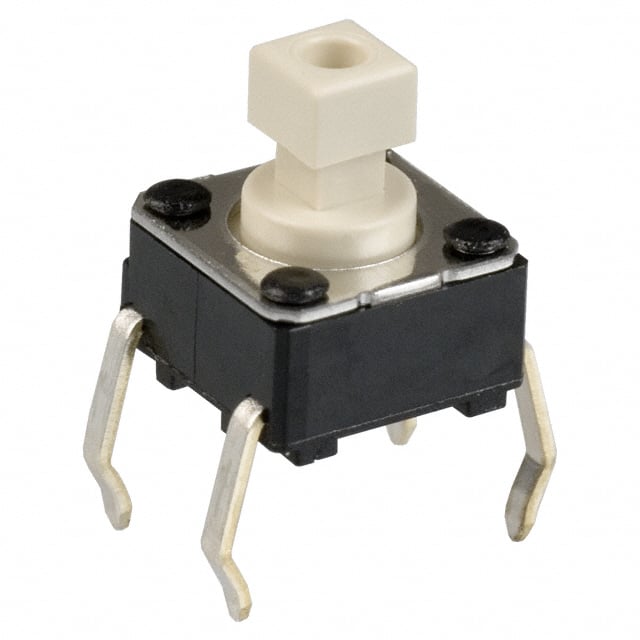

The Omron B3F-1050 is a tactile switch designed for electronic applications requiring a momentary action. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration.
Key electrical specifications include a contact rating of 0.05A at 24VDC. The switch operates within a temperature range of -25°C to 70°C and requires an operating force of 100gf. Its actuator type is a plunger for a cap, with a vertical height of 7.30mm off the PCB.
Mechanically, the switch has an outline of 6.00mm x 6.00mm and is designed for Through Hole mounting with a PC Pin termination style. It is a non-illuminated component.
This tactile switch is suitable for various control interfaces and user input devices where a distinct tactile feedback is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The B3F-1050 has a SPST-NO circuit.
The contact rating is 0.05A at 24VDC.
The operating temperature range is -25°C to 70°C.
It is mounted using the Through Hole method.
The operating force is 100gf.
