| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Form | |
| Contact Rating @ Voltage | |
| Current Rating | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

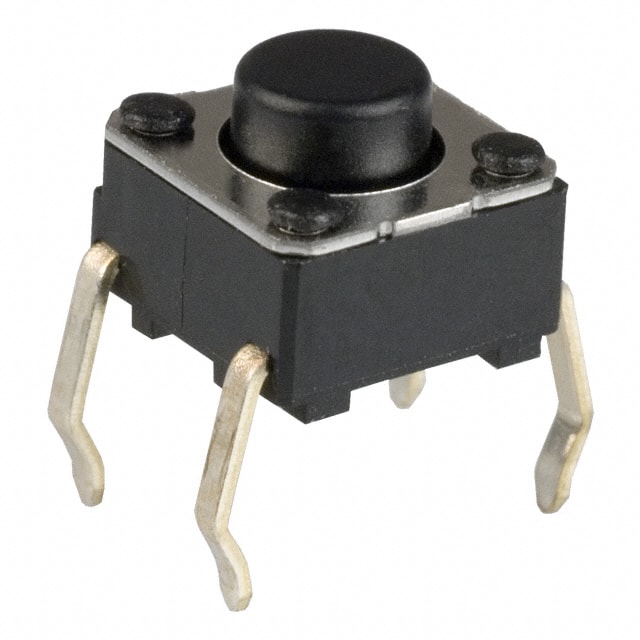

The Omron B3F-1020 is a tactile switch designed for various electronic applications. It operates with a SPST-NO circuit configuration, offering reliable performance.
Key electrical specifications include a contact rating of 0.05A at 24VDC. The switch is non-illuminated and has an operating force of 100gf. Its operating temperature range is from -25°C to 70°C.
Mechanically, the B3F-1020 features a Through Hole mounting type and a PC Pin termination style. The actuator height is 5.00mm, and the overall dimensions are 6.00mm x 6.00mm. The actuator orientation is top actuated, with a standard actuator type.
This component is RoHS3 Compliant and has an MSL of 1 Unlimited, indicating suitability for a wide range of manufacturing environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-25°C to 70°C
0.05A @ 24VDC
Through Hole
Yes, it is RoHS3 Compliant.
Level 1 Unlimited
