| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| OCP | |
| OTP | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Remote On/Off | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| UVLO | |
| Voltage | |
| Voltage - Input (Min) | |
| Voltage - Output 1 | |
| Width |

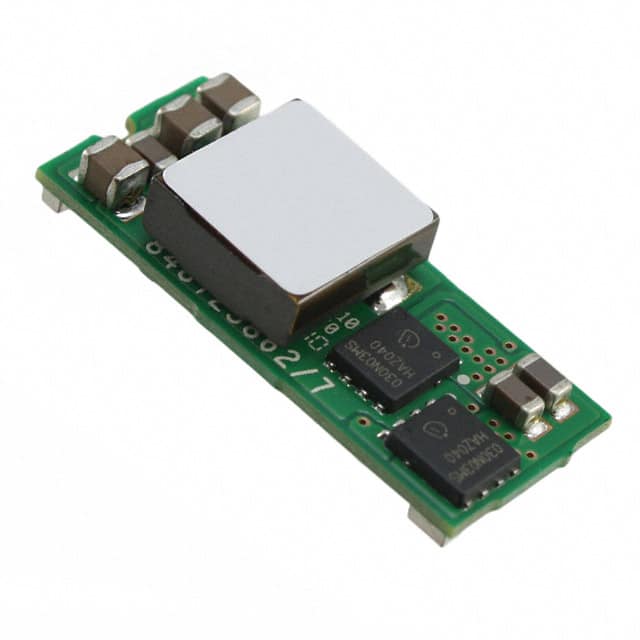

The AXH016A0X3-SRZ is a non-isolated point-of-load (PoL) DC DC converter module from ABB Power Electronics. It delivers a single adjustable output voltage from 0.8V to 3.6V with a maximum output current of 16A, providing up to 58W of power. The module achieves up to 95% efficiency, making it suitable for power-sensitive applications.
This converter operates from a 3V minimum input voltage and includes remote on/off control, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). The control features include enable and active low logic. It is designed for commercial ITE (Information Technology Equipment) applications.
The module is housed in a 6-SMD package with surface mount mounting. Dimensions are 33.0mm x 13.5mm x 8.3mm. It operates over a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.53 | $21.53 |
| 5+ | $20.73 | $20.73 |
| 10+ | $20.39 | $20.39 |
| 25+ | $19.95 | $19.95 |
| 50+ | $19.46 | $19.46 |
| 100+ | $19.21 | $19.21 |
| 250+ | $19.12 | $19.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum input voltage is 3V.
The output voltage is adjustable from 0.8V to 3.6V.
The maximum output current is 16A.
The efficiency is up to 95%.
It includes overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).
The operating temperature range is -40°C to 85°C.
The part is listed as RoHS3 compliant, but this is unverified.
