| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
198 pcs
|
198 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

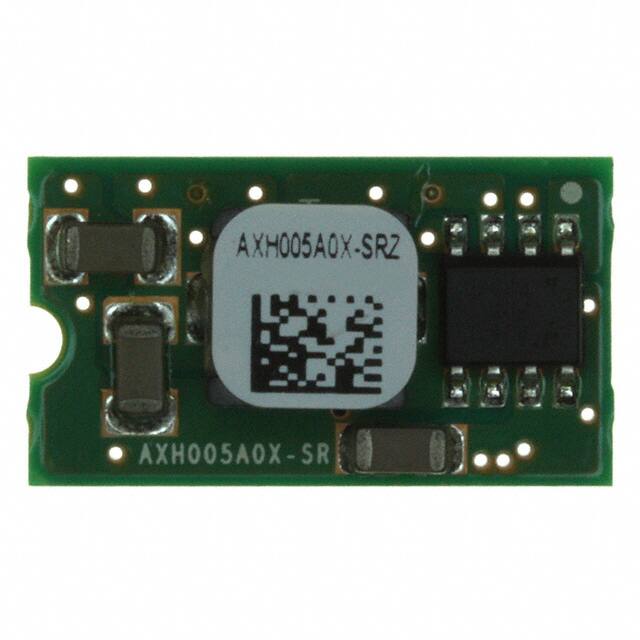

The AXH005A0X-SRZ is a non-isolated Point-of-Load (PoL) DC DC converter module from ABB Power Electronics. It operates from a nominal 3V input and provides an adjustable output voltage from 0.8V to 3.6V, with a maximum output current of 5A and total power of 18W. The module achieves high efficiency up to 94%, reducing power loss in compact designs.
Key features include remote on/off control, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). The control features are enable active low. The converter is housed in a 5-SMD surface mount package measuring 20.3mm x 11.4mm x 6.2mm, suitable for automated assembly.
The operating temperature range is -40°C to 85°C, making it suitable for commercial ITE applications. The module is designed for use in distributed power architectures where space is limited and efficiency is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.08 | $12.08 |
| 5+ | $11.63 | $11.63 |
| 10+ | $11.44 | $11.44 |
| 25+ | $11.20 | $11.20 |
| 50+ | $11.02 | $11.02 |
| 100+ | $10.84 | $10.84 |
| 250+ | $10.61 | $10.61 |
| 500+ | $10.31 | $10.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 3V.
The output voltage is adjustable from 0.8V to 3.6V.
The maximum output current is 5A.
It comes in a 5-SMD Module surface mount package.
The operating temperature range is -40°C to 85°C.
It is listed as RoHS3 Compliant, but this status is unverified.
The module includes Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO).
