| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | 1346+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

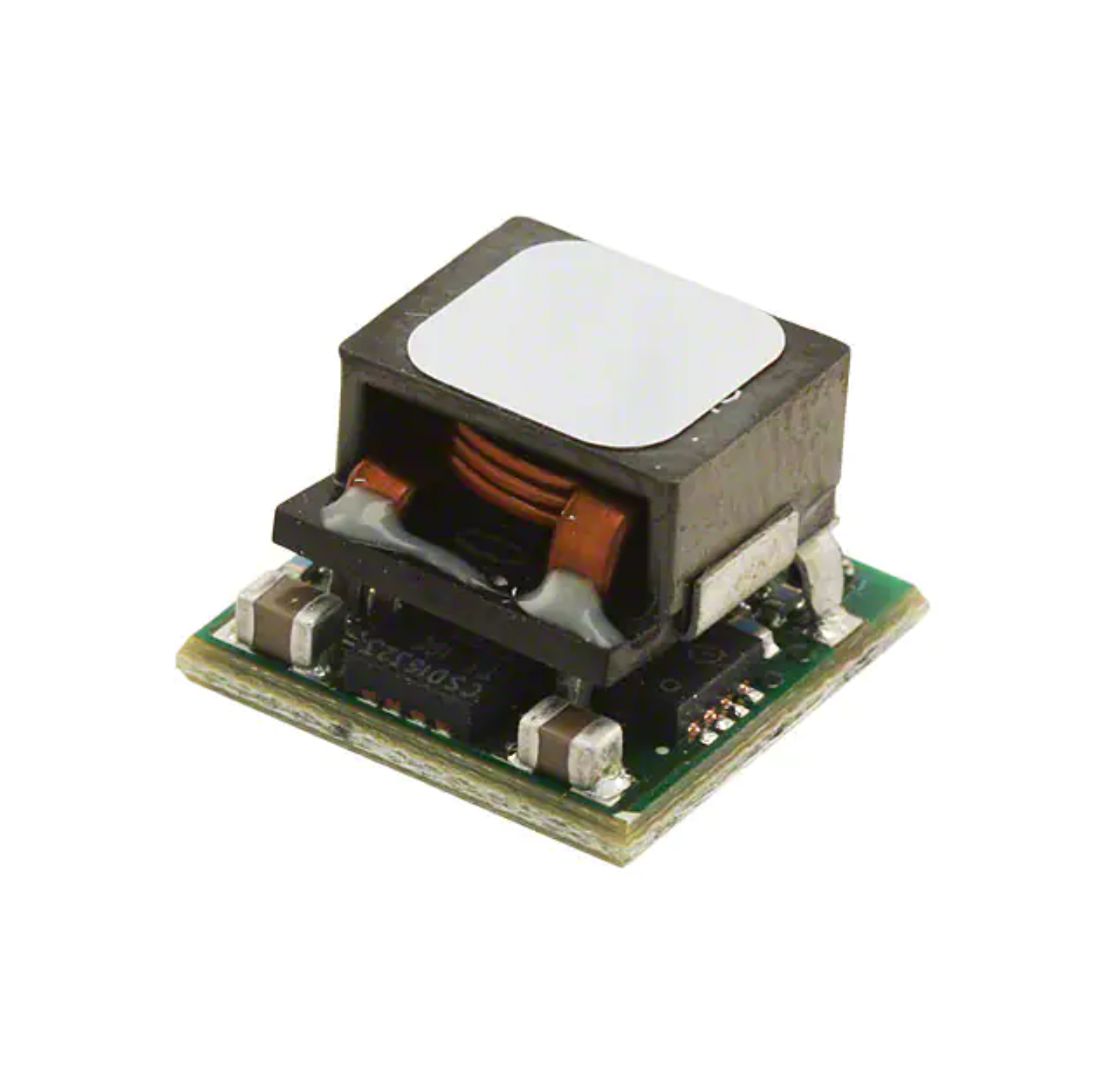

The AXH005A0X-SR is a non-isolated point-of-load (PoL) DC-DC converter module from ABB Power Electronics. It delivers a single regulated output adjustable from 0.8V to 3.6V, with a maximum output current of 5A and power rating of 18W.
Typical efficiency is 94%. The module includes protection features such as overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). The control feature uses an active-low enable signal for remote on/off control. The nominal input voltage is 3V.
Packaged in a 5-SMD surface-mount module measuring 20.3mm x 11.4mm x 6.2mm, it operates over a temperature range of -40°C to 85°C. It is designed for commercial ITE (Information Technology Equipment) applications.
Common uses include powering FPGAs, ASICs, and DSPs in distributed power architectures, as well as telecom and networking equipment requiring efficient low-voltage conversion.
| Qty | Low | High |
|---|---|---|
| 500+ | $8.04 | $8.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.8V to 3.6V.
It is packaged in a 5-SMD surface-mount module.
The operating temperature range is -40°C to 85°C.
It is listed as RoHS3 compliant, but this is unverified.
The maximum output current is 5A.
It includes overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).
