| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Converter Type | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Humidity | |
| I/O Isolation | |
| Industrial Grade | |
| Input Voltage Min | |
| Input Voltage Range | |
| Insulation Capacitance | |
| Insulation Resistance | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTBF | |
| Mounting Type | |
| Noise/Ripple | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Safety Approvals | |
| Short circuit protection | |
| Storage Temperature | |
| Switching Frequency | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage Tolerance | |
| Width |

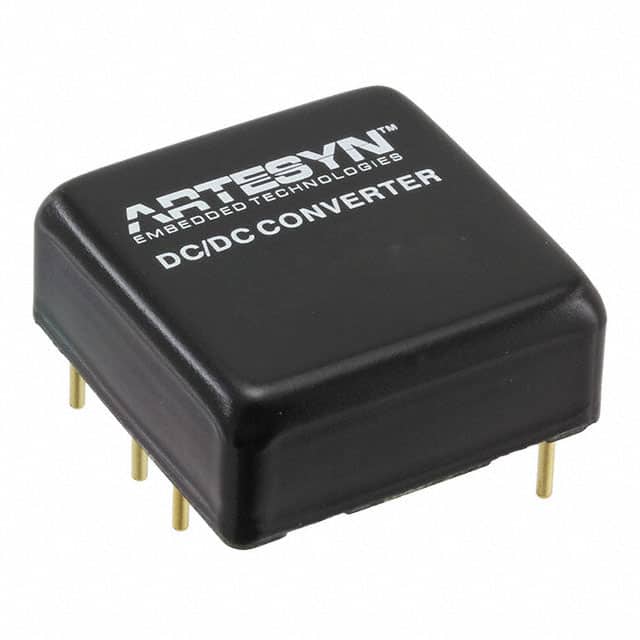

The AXA00H18-L is a low-input isolated DC-DC converter from the Artesyn AXA series, offering 20 watts of output power. It features an ultra-wide 4:1 input voltage range of 9 to 36 Vdc, making it suitable for use with nominal 12V or 24V supplies. The single output delivers 24V at 835mA with high efficiency of 88%.
Key electrical specifications include tight voltage tolerance of ±1%, line and load regulation of ±0.2%, and a maximum noise/ripple of 150mV. Protection features include hiccup mode overload and short circuit protection, as well as remote On/Off control. The converter operates at a switching frequency of 330KHz and provides 1500Vdc input/output isolation.
The converter is housed in a compact 6-DIP through-hole package measuring 1.00 x 1.00 x 0.40 inches (25.4 x 25.4 x 10.2 mm) with an isolated metal baseplate. It is rated for operation over a wide temperature range of -40°C to +85°C and is designed for ITE (commercial) applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.62 | $53.62 |
| 5+ | $51.18 | $51.18 |
| 10+ | $50.25 | $50.25 |
| 20+ | $49.42 | $49.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9V to 36Vdc, with a nominal 12V or 24V supply.
It provides a single 24V output at 835mA, with a total power of 20W.
The operating temperature range is -40°C to +85°C.
It is a 6-DIP through-hole module measuring 1.00 x 1.00 x 0.40 inches (25.4 x 25.4 x 10.2 mm).
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
