| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,556 pcs
|
1556 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTBF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Size / Dimension | |
| Tape & Reel | |
| Temperature Regulation | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Output (Max) | |
| Voltage - Output (Min) | |
| Width |

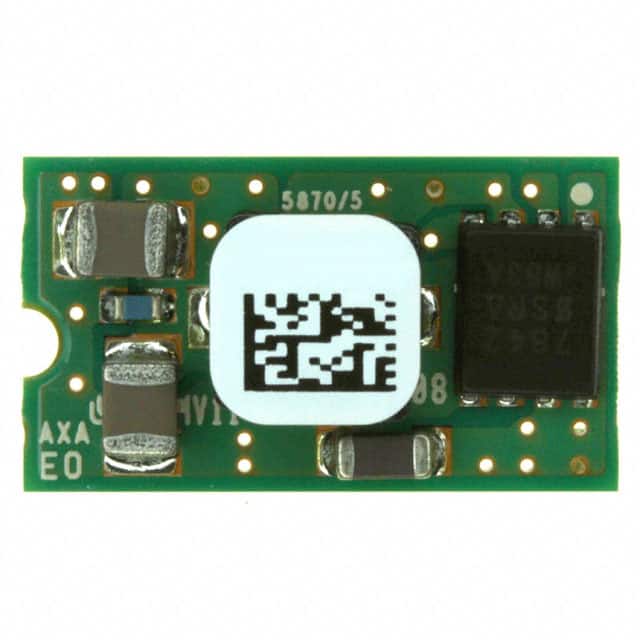

The AXA005A0X-SRZ is a non-isolated point-of-load (PoL) DC-DC converter module from the Austin MicroLynx series by ABB Power Electronics. It accepts a 10V to 14V input bus and provides a precisely regulated output voltage programmable from 0.75V to 5.5V via an external resistor, delivering up to 5A of output current (27W).
Typical efficiency reaches 89% at 3.3V full load with a 12V input. The module features line regulation of 0.3%, load regulation of 0.4%, and temperature regulation of 0.4%. Protection features include remote on/off, output overcurrent protection (non-latching), over-temperature protection, and under-voltage lockout.
Housed in a compact 5-SMD surface-mount package measuring 20.3mm x 8.9mm x 7.2mm, the module operates over a -40°C to +85°C temperature range. It is designed for distributed power architectures, intermediate bus voltage applications, telecommunications equipment, servers, storage, and networking equipment.
| Qty | Low | High |
|---|---|---|
| 400+ | $9.36 | $9.36 |
| 800+ | $9.21 | $9.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 10V to 14V DC.
The output voltage is programmable from 0.75V to 5.5V, and the maximum output current is 5A (27W).
Typical efficiency is 89% at 3.3V full load with a 12V input.
The operating temperature range is -40°C to +85°C.
It comes in a 5-SMD surface mount module package.
Yes, it is RoHS3 compliant per the datasheet.
It includes remote on/off, output overcurrent protection (OCP), over-temperature protection (OTP), and under-voltage lockout (UVLO).
