| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Type |

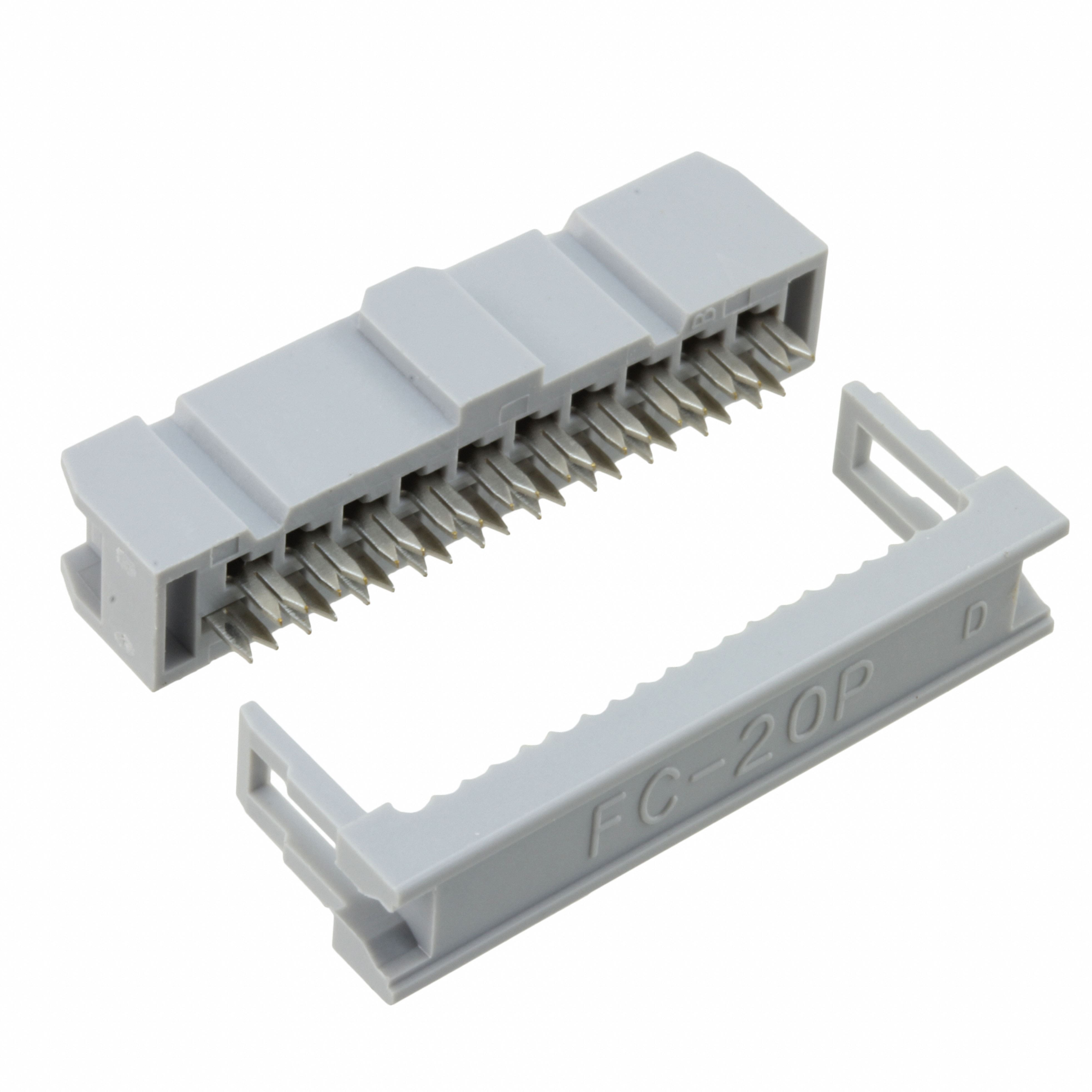

The Assmann WSW Components AWP 20-7240-T is a 20 position IDC (Insulation Displacement Connector) socket designed for use with ribbon cable. It features a 2.54mm (0.100") pitch and row spacing, making it compatible with standard 0.100" header strips. The connector uses female socket contacts with a gold flash finish for reliable signal integrity. The housing is gray and includes feed through and polarizing key features for correct orientation. This connector is free hanging (in-line) mounted, suitable for cable-to-board or cable-to-cable applications where a secure, mass-termination connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
| 10+ | $0.44 | $0.44 |
| 25+ | $0.41 | $0.41 |
| 50+ | $0.39 | $0.39 |
| 108+ | $0.37 | $0.37 |
| 324+ | $0.34 | $0.34 |
| 540+ | $0.33 | $0.33 |
| 1,080+ | $0.32 | $0.32 |
| 2,592+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 20 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") and the row spacing is also 2.54mm (0.100").
It is a free hanging (in-line) connector, designed for IDC termination to ribbon cable.
The contacts have a gold flash finish.
The housing is gray.
