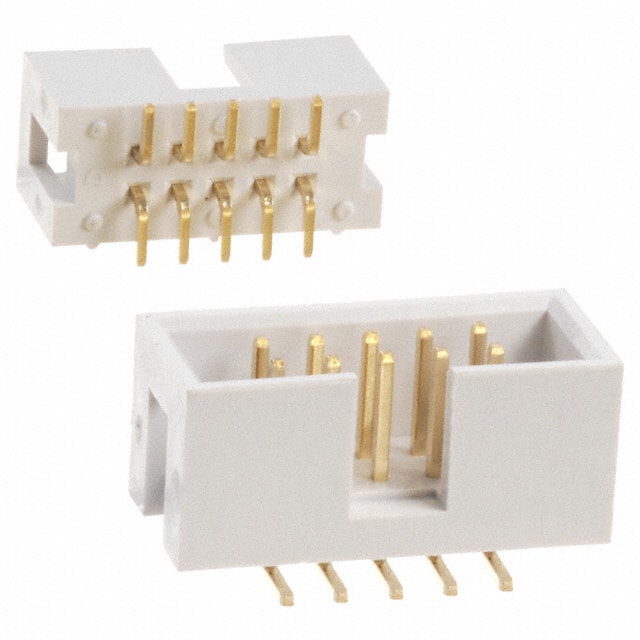

AWHW10-G-SMD-R 10-position shrouded header with male pins, 2.54mm pitch, surface mount termination, gold flash contacts, rated 3A.
Mfr Part #:

AWHW10-G-SMD-R

Available from 1 distributors
Mfr Name: Assmann WSW Components
Assmann WSW Components
10-position shrouded header with male pins, 2.54mm pitch, surface mount termination, gold flash contacts, rated 3A.
✓ Total Stock: 90 pcs
$ Price Range: $0.68

AWHW10-G-SMD-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AWHW10-G-SMD-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Plating
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Insulator Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

AWHW10-G-SMD-R Description

Short technical summary and product information.

The AWHW10-G-SMD-R is a 10-position shrouded header from Assmann WSW Components, designed for board-to-cable/wire applications. It features two rows of male pins with a 2.54mm pitch and row spacing, surface mount solder termination, and a push-pull fastening type. The insulator is made of PA9T+30% GF (UL94 V-0) in black, and contacts are brass with gold flash plating. Electrical ratings include 3A current, 1000V AC withstand voltage, 20 mΩ max contact resistance, and 1000 MΩ min insulation resistance. Operating temperature range is -40°C to +105°C. The header includes a keying slot and pick-and-place feature for automated assembly. Packing is tube with cap.

AWHW10-G-SMD-R Quick Information

Product Type: Header, Male Pins
Series: AWHW
Canonical Name: AWHW10-G-SMD-R - 10 Position Shrouded Header, Male Pins, Surface Mount, 2.54mm Pitch
Subcategory: Shrouded Header, Male Pins

AWHW10-G-SMD-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

AWHW10-G-SMD-R Estimated Pricing

Qty Low High
280+ $0.68 $0.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

AWHW10-G-SMD-R Features

  • 10-position shrouded header with 2.54mm pitch.
  • Gold flash plated brass contacts.
  • Rated for 3A current and 1000V AC.
  • Surface mount solder termination.
  • UL94 V-0 rated PA9T+30% GF insulator.

AWHW10-G-SMD-R Applications

  • Board-to-cable/wire interconnect applications.
  • Automated pick-and-place assembly lines.
  • Industrial control and instrumentation systems.
  • Consumer electronics requiring reliable connections.

AWHW10-G-SMD-R FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the AWHW10-G-SMD-R have?

10 positions, all loaded, in 2 rows.

What is the pitch of this header?

2.54 mm (0.100 inch).

What is the current rating?

3 A.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-40°C to +105°C.

What is the contact material and finish?

Brass contacts with gold flash plating.

Is the header shrouded?

Yes, it is shrouded with 4 walls.
