Mfr Part #:

AWHW 40G-SMD

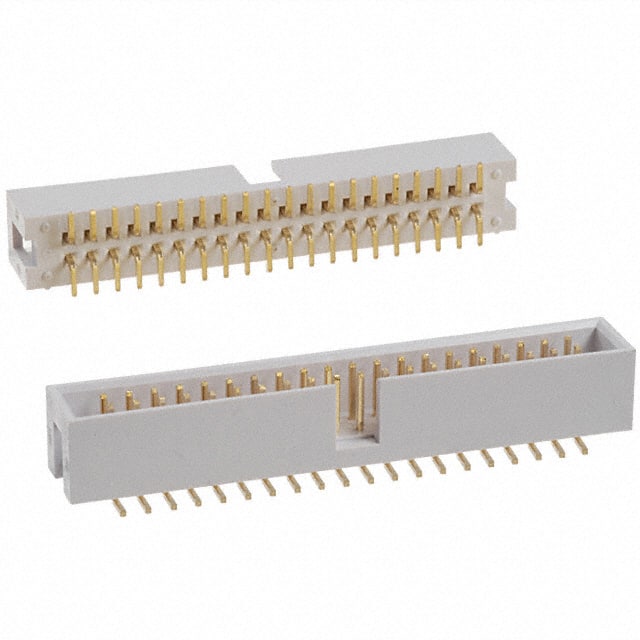

Name: AWHW 40G-SMD
Brand: Assmann WSW Components
SKU: AWHW 40G-SMD

Description:

CONN HEADER SMD 40POS 2.54MM

Stock on Request

AWHW 40G-SMD Description

Short technical summary and product information.

CONN HEADER SMD 40POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

AWHW40-G-SMD-R

Assmann WSW Components

CONN HEADER SMD 40POS 2.54MM

Category	Headers, Male Pins
Manufacturer Name	Assmann WSW Components
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	0.232" (5.90mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Features	Keying Slot, Pick and Place
Insulation Color	Black
Insulation Height	0.354" (9.00mm)
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
