| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Withstand Voltage |

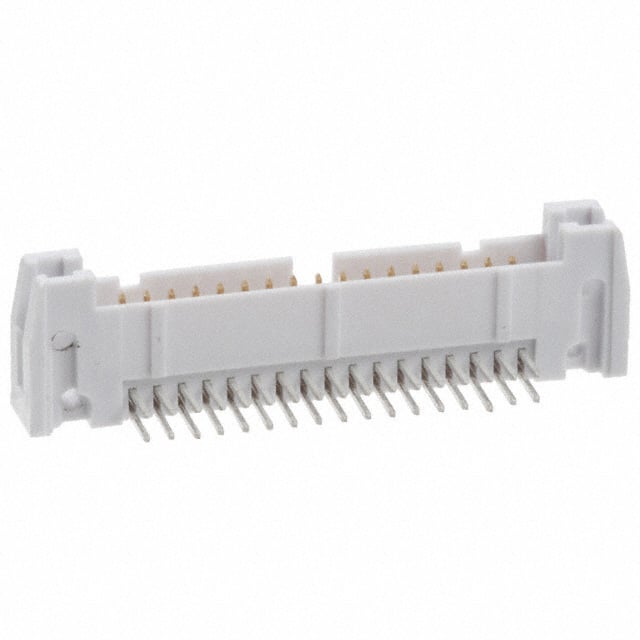

The AWH34A-0202-T-R is a 34-position shrouded header connector from Assmann WSW Components. It features 2 rows of male pins with a 2.54mm pitch and row spacing, making it suitable for standard ribbon cable or wire-to-board connections. The header is shrouded on all four sides (4-wall) with a push-pull fastening mechanism and includes a keying slot for polarization.
The connector is rated for 3A current per pin and can withstand 1000V AC/minute. Contact resistance is 20mOhm maximum, and insulation resistance is 1000MOhm minimum. It operates over a temperature range of -40°C to +105°C and is housed in a gray PBT+30% glass filled insulator with UL94 V-0 flammability rating. Contacts are brass with tin flash plating.
This header is designed for through hole right angle mounting and terminated by soldering. It comes packaged in a tray and is RoHS compliant. The contact length is 3.81mm, insulation height is 17.00mm, and the contact shape is square. All 34 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 80+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions.
2.54mm (0.100").
3A.
Withstand voltage of 1000V AC/minute.
Through hole, right angle.
-40°C to +105°C.
Yes, it is RoHS3 compliant as stated in the datasheet.
