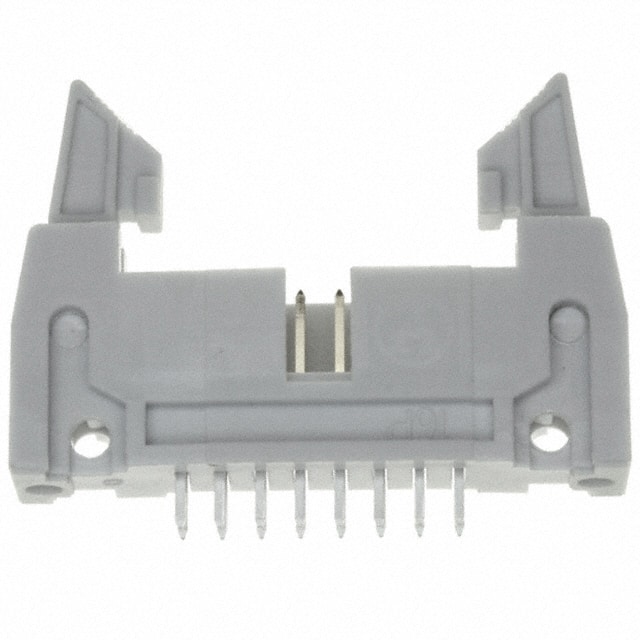

The AWH16G-0222-T-R is a 16 position, dual row shrouded header from Assmann WSW Components. It features a 2.54mm pitch and row spacing, with male square pins and tin-plated brass contacts. The header is designed for board-to-cable/wire applications and includes a keying slot for polarization.
The connector is shrouded on all four walls and includes short latch lock/eject hooks for secure mating. The insulation is gray glass-filled PBT rated UL94 V-0. The operating temperature range is -55°C to +105°C per the datasheet. The current rating is 1A per the datasheet, with a contact resistance of 10 mΩ max and insulation resistance of 1000 MΩ min.
| Qty | Low | High |
|---|---|---|
| 120+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
The datasheet specifies a current rating of 1A. Note: existing database attributes list 3A, but the datasheet value is 1A.
The mounting type is through hole with solder termination.
It has 16 positions arranged in 2 rows.
The datasheet specifies -55°C to +105°C. Existing database attributes list -40°C to 105°C.
RoHS compliance is listed as RoHS3 Compliant, but this is unverified.
