Mfr Part #:

AWH 24G-0222-T

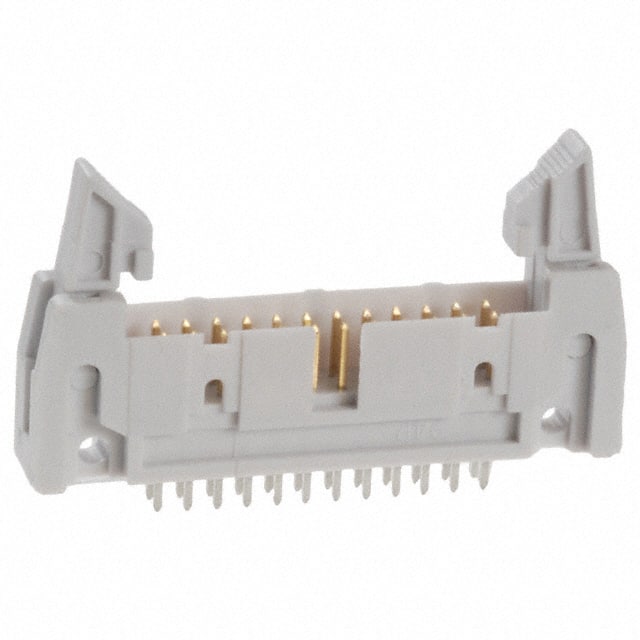

Name: AWH 24G-0222-T
Brand: Assmann WSW Components
SKU: AWH 24G-0222-T

Description:

CONN HEADER VERT 24POS 2.54MM

Stock on Request

AWH 24G-0222-T Description

Short technical summary and product information.

CONN HEADER VERT 24POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

AWH24G-0222-T-R

Assmann WSW Components

CONN HEADER VERT 24POS 2.54MM

Category	Headers, Male Pins
Manufacturer Name	Assmann WSW Components
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	Flash
Contact Length	0.130" (3.30mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Color	Gray
Insulation Height	0.669" (17.00mm)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
