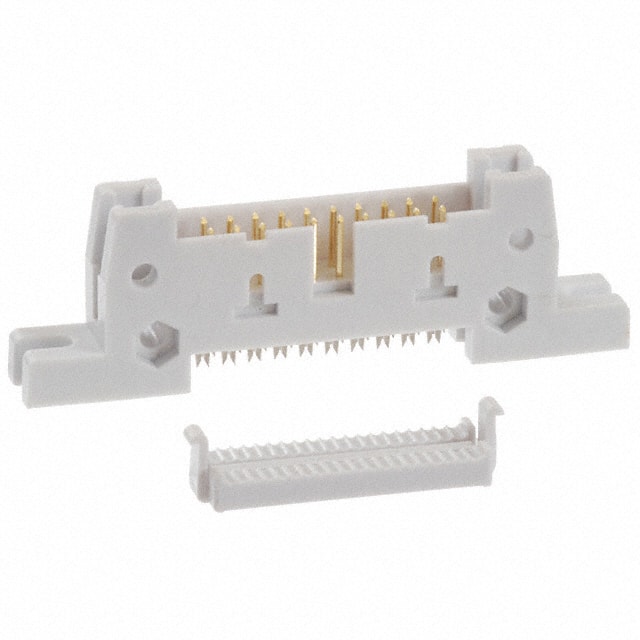

The AWH 20G-E202-IDC is a 20-position, 2-row IDC header from the AWHxxG-E2x2-IDC series by Assmann WSW Components. It features male pins with a 2.54mm pitch and 0.100" row spacing, designed for panel mount applications with IDC termination for ribbon cable. The contacts are brass with 1µ" gold selective plating over nickel, housed in a gray PBT+30% glass fiber insulator rated UL94V-0. Electrical ratings include a 3A current capacity, 1000V AC/min withstand voltage, 20mΩ max contact resistance, and 1000MΩ min insulation resistance. Operating temperature range is -40°C to +105°C. The feed-through design accommodates ribbon cable passthrough. For 20-64 position variants, the connector includes both 'M' and 'N' slots for mounting. This part is RoHS compliant and packaged in a tube.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.81 | $3.81 |
| 18+ | $3.10 | $3.10 |
| 108+ | $2.73 | $2.73 |
| 504+ | $2.45 | $2.45 |
| 1,008+ | $2.34 | $2.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
3.0 A.
Withstand voltage is 1000 V AC for 1 minute.
Panel mount.
