| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Conductor Composition | |
| Conductor Resistance | |
| Conductor Strand | |
| Cross Section Area | |
| Flame Test | |
| Insulation Resistance | |
| Insulation Thickness | |
| Jacket (Insulation) Material | |
| Jacket Color | |
| Jacket Material | |
| Lead Spacing | |
| Length | |
| Number of Conductors | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Rated Temperature | |
| Rated Voltage | |
| Ratings | |
| Ribbon Thickness | |
| Ribbon Width | |
| Shielding | |
| Spark Test Voltage | |
| Voltage | |
| Wire Gauge |

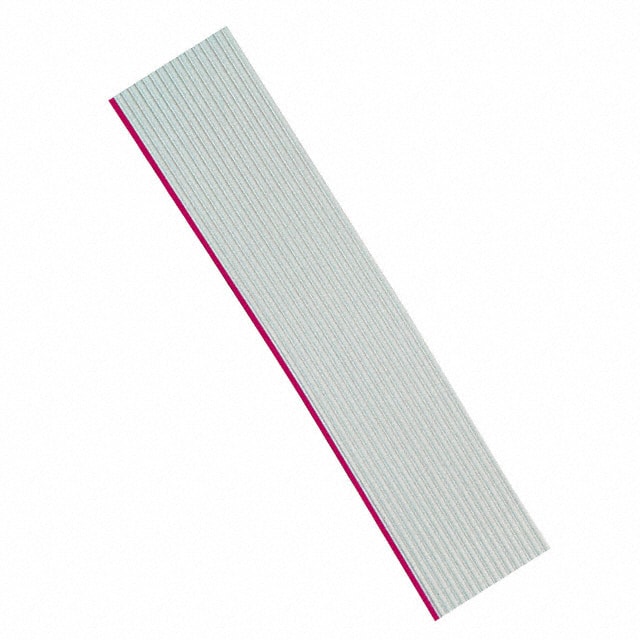

The AWG28-16/G/300 is a 16-conductor flat ribbon cable manufactured by Assmann WSW Components. It is designed for internal wiring applications where space-saving and organized routing are required. Each conductor is 28 AWG stranded wire (7/0.127mm) with a 1.27mm pitch, making it compatible with standard IDC connectors. The cable is rated for 300V and 105°C maximum operating temperature, with a UL Style 2651 listing and VW-1 flame test compliance. The jacket is made of gray PVC, providing good flexibility and insulation. The cable is unshielded, suitable for low-voltage signal and control circuits. It comes in a 300 ft (91.44m) length, ideal for medium to large wiring runs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 5+ | $0.89 | $0.89 |
| 10+ | $0.81 | $0.81 |
| 25+ | $0.71 | $0.71 |
| 50+ | $0.64 | $0.64 |
| 100+ | $0.58 | $0.58 |
| 300+ | $0.52 | $0.52 |
| 600+ | $0.47 | $0.47 |
| 900+ | $0.44 | $0.44 |
| 1,500+ | $0.41 | $0.41 |
| 2,100+ | $0.40 | $0.40 |
| 3,000+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 300V.
The operating temperature range is -10°C to 105°C.
Yes, it is RoHS3 compliant.
It has 16 conductors.
The conductor gauge is 28 AWG.
The pitch is 1.27mm (0.050 inches).
The length is 300 feet (91.44 meters).
