| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 1931 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Marking | |
| Actuator Type | |
| Automotive Grade | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Diameter | |
| Failure Rate | |
| Illumination Type, Color | |
| Industrial Grade | |
| Ingress Protection | |
| Lamp Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

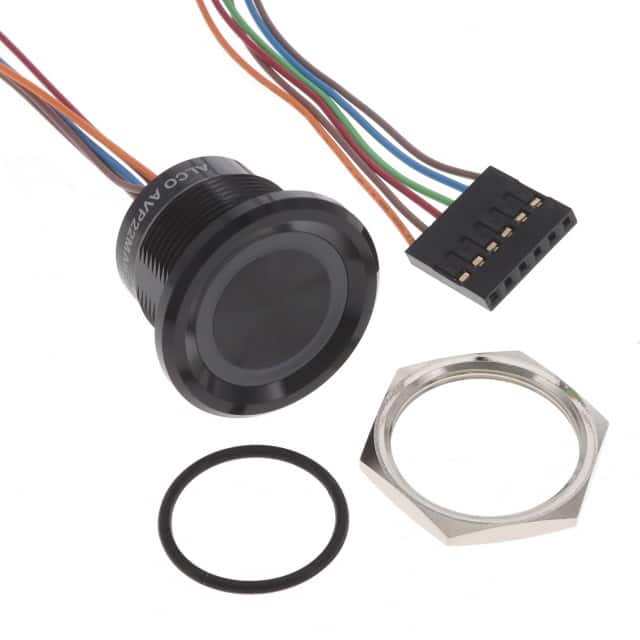

The TE Connectivity AVP22MAIBCE0DT5A04 is an anti-vandal illuminated pushbutton switch designed for robust applications. It features a 22mm diameter bushing and a momentary actuation type with an Off-Mom function.
This switch offers a high level of durability with an IP68 rating for dust-tight and waterproof sealing. It has a contact rating of 1A at 24VDC/AC and a contact resistance of 1Ω maximum. The operating life is rated up to 50 million cycles, ensuring long-term reliability.
Key electrical specifications include a SPST-NO circuit and a voltage rating of 5 VDC. The illumination is provided by an LED with RGB color options. The switch is designed for panel mounting with a front-facing installation and has a silver actuator.
Applications for this series include industrial control products, communication equipment, and medical equipment. The AVP series is known for its high strength, corrosion resistance, and easy heat dissipation. This specific model comes with wire leads for termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 5 VDC.
The current rating is 1A (AC/DC).
The operating temperature range is -20°C to 65°C.
The IP rating is IP68.
It has momentary actuation.
The operating life is up to 50 million cycles.
The illumination colors are RGB.
