| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| Features | |
| Gender | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Mating Cycles | |
| Mating Force | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Packaging Type | |
| Shell Material | |
| Solder Finish | |
| Soldering Temperature | |
| Specifications | |
| Specifications (USB Standard) | |
| Termination | |
| Underplating | |
| Unmating Force | |
| Voltage Rating |

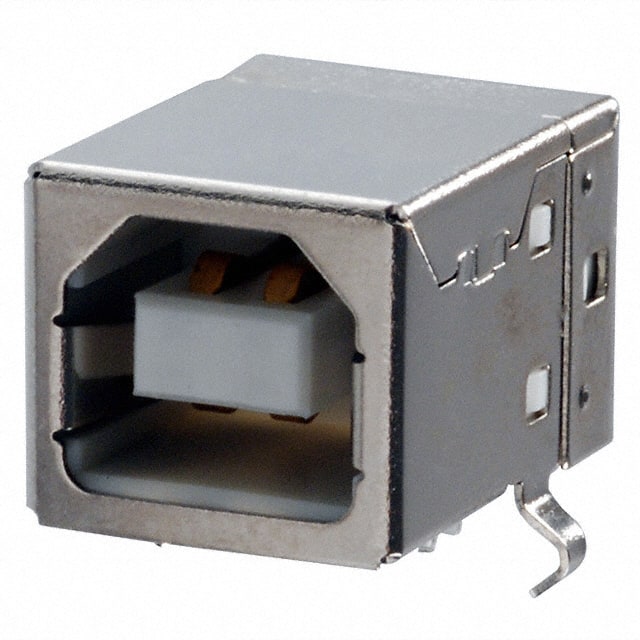

The AU-Y1007 is a USB-B receptacle connector from Assmann WSW Components, designed for reliable data and power connections in electronic assemblies. It features 4 contacts in a single port configuration, with a right angle orientation for space-constrained PCB layouts.
Electrical specifications include a current rating of 1.5A and a voltage rating of 30VAC. The connector is rated for a minimum of 1500 mating cycles, with a maximum mating force of 3.57kgf and a minimum unmating force of 1.02kgf. Contact resistance is 30mΩ maximum, and insulation resistance is 1000MΩ minimum.
The housing is made of PBT+30%GF UL94V-0 material in white, with a brass shell and phosphor bronze contacts featuring selective 5u" gold plating. The connector is RoHS compliant and packaged in trays.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.81 | $0.81 |
| 10+ | $0.69 | $0.69 |
| 25+ | $0.65 | $0.65 |
| 80+ | $0.60 | $0.60 |
| 160+ | $0.57 | $0.57 |
| 320+ | $0.54 | $0.54 |
| 560+ | $0.52 | $0.52 |
| 1,040+ | $0.50 | $0.50 |
| 2,560+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AU-Y1007 has a current rating of 1.5A.
The voltage rating is 30VAC.
The AU-Y1007 uses through hole, right angle mounting.
It is rated for a minimum of 1500 mating cycles.
The operating temperature range is -55°C to 85°C.
Yes, the AU-Y1007 is RoHS compliant as per the datasheet.
