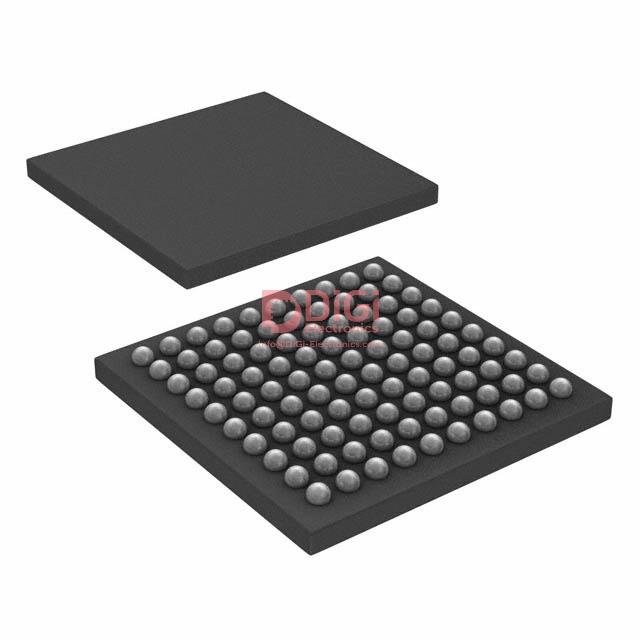

ATSAMS70N20A-CFNT IC MCU 32BIT 1MB FLASH 100VFBGA. ARM Cortex-M7 core, 300MHz clock, 1MB Flash, 384KB RAM, 75 I/O, various connectivity options.
Mfr Part #:

ATSAMS70N20A-CFNT

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
IC MCU 32BIT 1MB FLASH 100VFBGA. ARM Cortex-M7 core, 300MHz clock, 1MB Flash, 384KB RAM, 75 I/O, various connectivity options.
✓ Total Stock: 2,253 pcs

ATSAMS70N20A-CFNT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,253 pcs
On Request
2253 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ATSAMS70N20A-CFNT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Failure Rate
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

ATSAMS70N20A-CFNT Description

Short technical summary and product information.

The ATSAMS70N20A-CFNT is a 32-bit microcontroller from Microchip Technology's SAM S70 series. It features an ARM Cortex-M7 core operating at 300MHz, with 1MB of Flash memory and 384KB of RAM. The device includes a wide range of peripherals such as brown-out detect/reset, DMA, I²S, POR, PWM, and watchdog timer. Connectivity options include I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, and USB. It also features 10x12-bit ADCs and 2x12-bit DACs. The microcontroller operates from 1.08V to 3.6V supply voltage and over -40°C to 105°C temperature range. It is available in a 100-VFBGA (7x7) surface mount package and is supplied in tape and reel packaging.

ATSAMS70N20A-CFNT Quick Information

Product Type: Microcontroller
Series: SAM S70
Canonical Name: Microchip Technology ATSAMS70N20A-CFNT ARM Cortex-M7 SAM S70 Microcontroller IC
Subcategory: ARM Microcontrollers

ATSAMS70N20A-CFNT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ATSAMS70N20A-CFNT Features

  • ARM Cortex-M7 core at 300MHz clock speed.
  • 1MB Flash and 384KB RAM memory.
  • 75 I/O pins with multiple connectivity options.
  • 10x12-bit ADC and 2x12-bit DAC converters.
  • Wide temperature range -40°C to 105°C.

ATSAMS70N20A-CFNT Applications

  • Used in industrial control and automation systems.
  • Ideal for IoT gateway and edge computing devices.
  • Suitable for motor control and power management.
  • Applicable in automotive and aerospace embedded systems.

ATSAMS70N20A-CFNT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

1.08V to 3.6V.

What is the package type?

100-VFBGA (7x7mm) surface mount.

What is the operating temperature range?

-40°C to 105°C.

Is the component RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the core processor?

ARM Cortex-M7 32-bit single-core.

What are the available connectivity interfaces?

I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, and USB.

How much Flash and RAM does the MCU have?

1MB Flash and 384KB RAM.
