| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,336 pcs
|
2336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Min) | |
| Voltage - Output 1 | |
| Width |

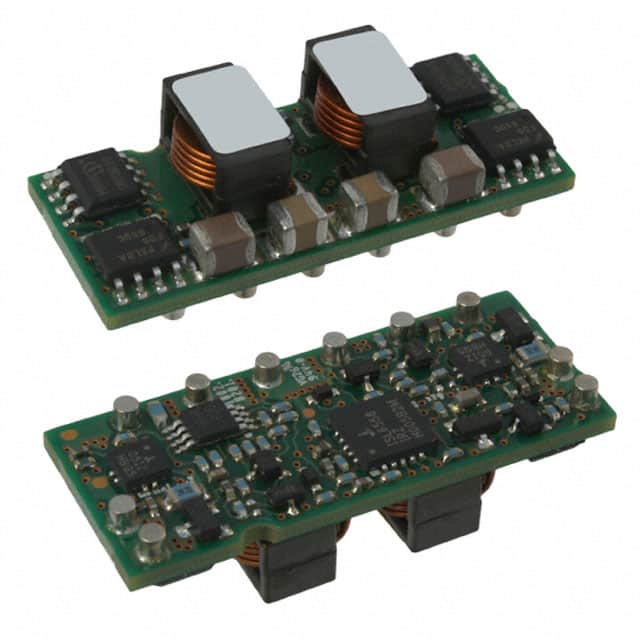

The ATS030A0X3-SRPHZ is a Non-Isolated Point-of-Load (PoL) DC DC converter module from ABB Power Electronics. It provides a single adjustable output voltage from 0.8V to 2.75V with a maximum output current of 30A, delivering up to 165W of power. The module achieves up to 93% efficiency, reducing thermal dissipation in space-constrained designs.
This surface-mount module comes in a compact 5-SMD package measuring 33.0mm x 9.1mm x 13.5mm. It includes protection features such as overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). Control is via an enable input with active-low logic, and remote on/off capability is supported.
Designed for commercial ITE (Information Technology Equipment) applications, the module operates over a temperature range of -40°C to 85°C. The input voltage range starts at 6V minimum, making it suitable for intermediate bus architectures and distributed power systems.
The output voltage is adjustable from 0.8V to 2.75V.
The maximum output current is 30A.
The efficiency is 93%.
The operating temperature range is -40°C to 85°C.
It comes in a 5-SMD Module surface mount package.
The RoHS status is listed as RoHS3 Compliant, but this is unverified.
