ATR11-D-X-63-WB-0.5A
Sensata
The Sensata ATR11-D-X-63-WB-0.5A is a single-pole, thermally operated circuit protector. It offers a 0.5A current rating and 240VAC voltage rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

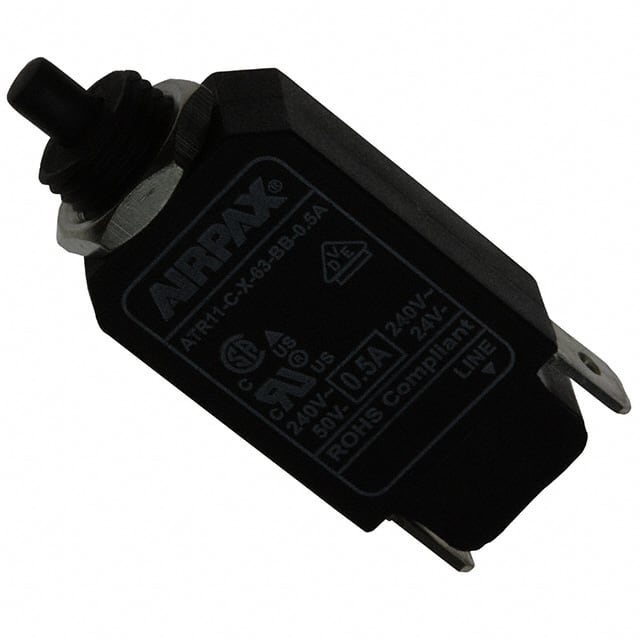

The Sensata ATR11-C-X-63-BB-0.5A is a single-pole, thermally operated overload protector from the ATR11 series. It utilizes a snap-acting trip mechanism for reliable, trip-free operation during current overloads. This circuit breaker is designed for general industrial applications and offers a current rating of 0.5A with a voltage rating of 240 VAC and 50 VDC.
Key electrical specifications include a maximum breaking capacity of 60A and a conditional short circuit capacity of 1KA. The device operates with a thermal tripping method and features a push-to-reset actuator. It is designed for panel mounting, making it suitable for integration into various equipment.
The ATR11 series is RoHS compliant and built for durability, with an operational life of 1000 cycles at 2x In. The maximum operating temperature is rated at 60°C ambient.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 0.5A.
The voltage ratings are 240 VAC and 50 VDC.
It is designed for panel mounting.
It is a thermal circuit breaker.
The maximum operating temperature is 60°C.
The operational life is 1000 cycles at 2x In.
