| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Protection Range | |
| Voltage | |
| Voltage Rating |

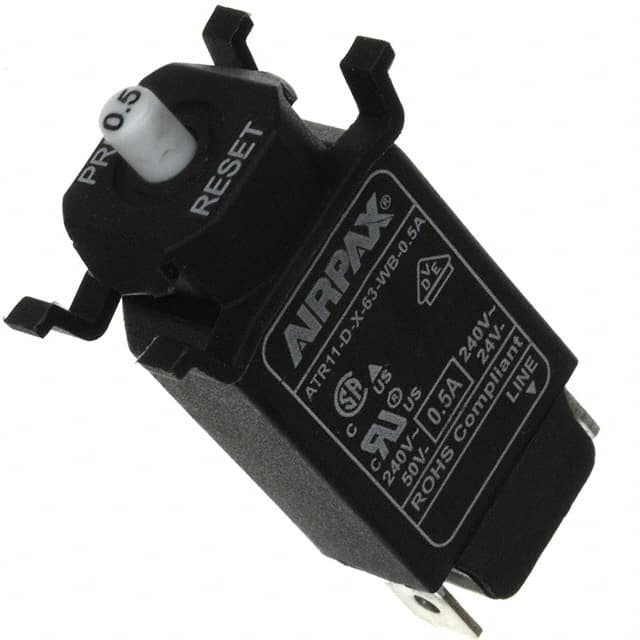

The Sensata ATR11-D-X-63-WB-0.5A is a single-pole, thermal circuit protector from the Airpax ATR11 series. It is designed for reliable, trip-free operation on current overloads.
Key electrical specifications include a current rating of 0.5A and a voltage rating of 240VAC. The breaker type is thermal, with a push-to-reset actuator. It features a maximum breaking capacity of 8x In for currents less than 6A and a conditional short circuit capacity of 1kA at 240VAC.
This circuit protector is suitable for general industrial applications and features a panel mount type. It operates within a maximum ambient temperature of 60°C. The device has an operational life of 1000 cycles at 2x In.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The unit is designed for equipment protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 0.5A.
The voltage rating is 240VAC.
It has 1 pole.
It is a thermal circuit breaker.
The mounting type is Panel Mount.
The maximum operating temperature is 60°C.
