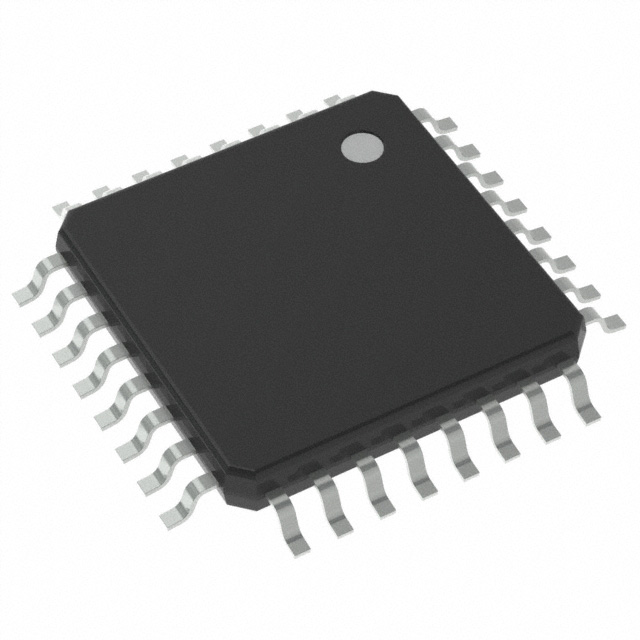

ATMEGA8A-AU
Atmel
8-bit AVR microcontroller with 8KB Flash, 1KB SRAM, 512B EEPROM, operating up to 16MHz.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160,000 pcs
|
160000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9,683 pcs
|
9683 pcs | On Request | 1 | On Request | On Request | 21+;15+ | On Request | On Request | |
|
6,112 pcs
|
6112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,074 pcs
|
5074 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
2,800 pcs
|
2800 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The ATMEGA8A-AU is a low-power 8-bit AVR microcontroller based on the AVR RISC architecture. It features 8KB of in-system self-programmable Flash memory, 1KB internal SRAM, and 512B EEPROM with high endurance (10,000 Flash and 100,000 EEPROM write/erase cycles). The device operates at a maximum clock frequency of 16 MHz, achieving up to 16 MIPS throughput.
Key electrical specifications include a wide supply voltage range of 2.7V to 5.5V and an operating temperature range of -40°C to 85°C. The microcontroller integrates 23 I/O lines, an 8-channel 10-bit ADC, and peripherals such as two 8-bit timers, one 16-bit timer, three PWM channels, a watchdog timer, and brown-out detection. Communication interfaces include I2C, SPI, and UART/USART.
The ATMEGA8A-AU is packaged in a 32-TQFP (7x7mm) surface-mount package, suitable for compact embedded designs. It supports in-system programming via an on-chip boot program and is fully static for low-power operation. Active power consumption is typically 3.6mA at 4MHz, with idle at 1.0mA and power-down mode as low as 0.5µA.
2.7V to 5.5V.
32-TQFP (7x7mm).
-40°C to 85°C.
It is listed as RoHS3 Compliant, but this is unverified.
8KB Flash.
16 MHz.
23 I/O lines.
