| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Min) | |
| Voltage - Output | |
| Width |

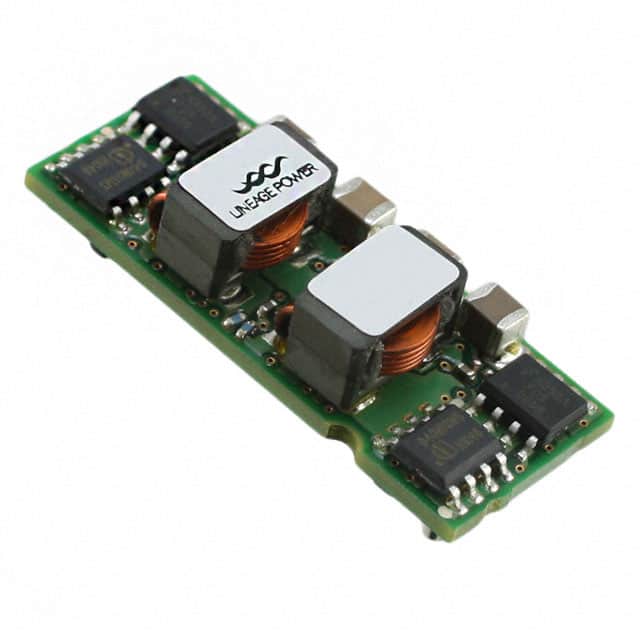

The ATH030A0X3-SRHZ is a high-efficiency non-isolated point-of-load (PoL) DC-DC converter from ABB Power Electronics. It delivers a programmable output voltage from 0.8V to 3.6V with a maximum output current of 30A and total power of 100W. The module achieves efficiency up to 92.2%, reducing thermal management requirements.
This converter includes essential protection features: remote on/off control, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). Control is via an enable input with active-low logic. The module is designed for commercial ITE applications and operates over a temperature range of -40°C to 85°C.
The converter is housed in a compact 10-SMD module measuring 33.0mm x 13.5mm x 9.1mm and is surface-mountable for automated assembly. Input voltage range is 4.5V minimum (maximum not specified from available data).
The output voltage range is 0.8V to 3.6V.
The maximum output current is 30A.
The operating temperature range is -40°C to 85°C.
It comes in a 10-SMD Module package for surface mount.
It includes overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).
Efficiency is 92.2%.
The part is indicated as RoHS3 compliant.
