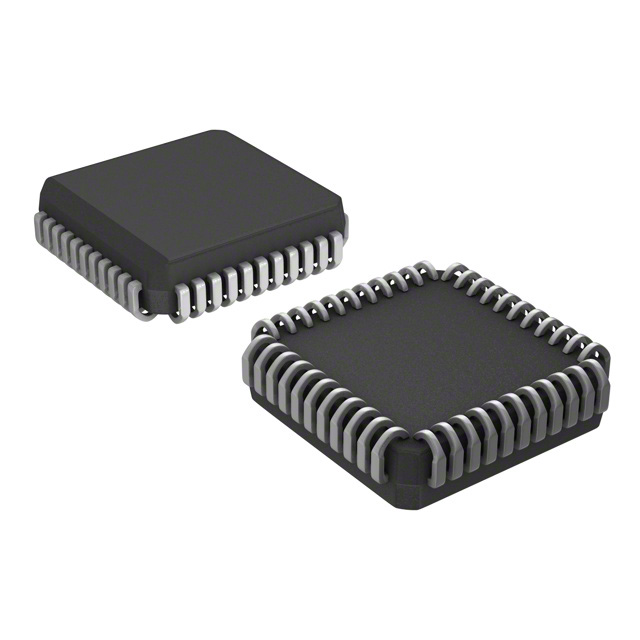

The ATF2500C-15JC is a high-density CMOS electrically-erasable programmable logic device (PLD) from Microchip Technology, part of the ATF2500C CPLD family. It features a fully connected logic array with 416 product terms, 24 flexible output macrocells each containing two flip-flops (total 48), 72 sum terms, and 8 synchronous product terms. The device offers a maximum pin-to-pin delay of 15 ns for 5V operation (4.75V to 5.25V supply). It is in-system programmable and backward compatible with earlier Atmel ATV2500B/BQ and ATV2500H software. The ATF2500C-15JC is available in a 44-lead PLCC (J-Lead) surface mount package (44-PLCC 16.6x16.6) and operates over the commercial temperature range of 0°C to 70°C. Additional features include 2000V ESD protection, 10-year data retention, 200 mA latch-up immunity, and pin keeper option. The device is designed for high-speed logic integration in applications requiring high gate utilization within a compact package.
The supply voltage is 4.75V to 5.25V.
The maximum pin-to-pin delay (tpd) is 15 ns.
It is available in a 44-lead PLCC (J-Lead) surface mount package, supplier device package 44-PLCC (16.6x16.6).
The operating temperature is 0°C to 70°C (commercial range).
It is indicated as RoHS3 Compliant, but this is unverified and has low confidence.
It has 24 macrocells.
Yes, it is in-system programmable.
