| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | 2021+ | On Request | On Request | |
|
578 pcs
|
578 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 02:15:19 |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel |

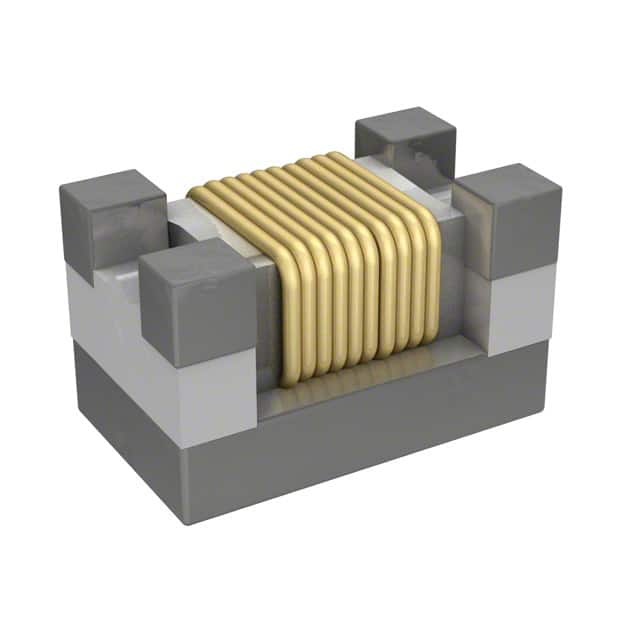

The TDK Corporation ATB2012-75011-T000 is a balun designed for RF applications. It operates within a frequency range of 50MHz to 1.2GHz, offering a balanced impedance of 75 Ohms on both ports.
This balun has a maximum insertion loss of 1.2dB, ensuring signal integrity. It is designed for surface mounting and comes in an 0805 (2012 Metric) package, making it suitable for compact electronic designs.
The ATB2012-75011-T000 is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating it is suitable for standard handling procedures. Its REACH status is unaffected.
This component is ideal for applications requiring impedance matching and signal balancing in the specified frequency range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 50MHz to 1.2GHz.
The impedance is 75 Ohms on both ports.
The maximum insertion loss is 1.2dB.
It uses an 0805 (2012 Metric) package.
It is designed for surface mounting.
