| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supply Voltage | |
| Voltage |
The Microchip Technology ATA6613C-PLQW-1 is an integrated microcontroller designed for LIN-bus slave-node applications. This System-in-Package (SiP) combines an AVR 8-bit microcontroller with a LIN-SBC, featuring a LIN transceiver, a 5V regulator, and a watchdog timer.
Key electrical specifications include 16KB of Flash program memory, 1KB of RAM, and 512 bytes of EEPROM. It operates with a supply voltage range of 2.7V to 5.5V and a clock speed of 16MHz. The device supports multiple connectivity options including I²C, LINbus, SPI, and UART/USART. It also includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT, along with an 8x10b Analog-to-Digital converter.

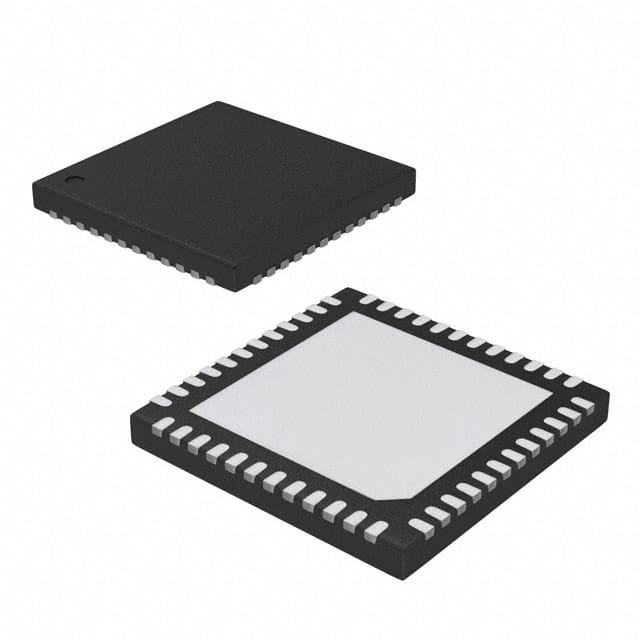

The operating temperature range is -40°C to +125°C (TC). The microcontroller is housed in a 48-VFQFN exposed pad package, with a supplier device package of 48-QFN (7x7). It is designed for surface mounting.
This component is suitable for automotive in-vehicle LIN networks, offering a highly integrated solution for various automotive electronic control units.
The operating voltage range is 5V to 27V.
The flash memory size is 16KB.
The operating temperature range is -40°C to +125°C.
It is supplied in a 48-VFQFN exposed pad package.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
