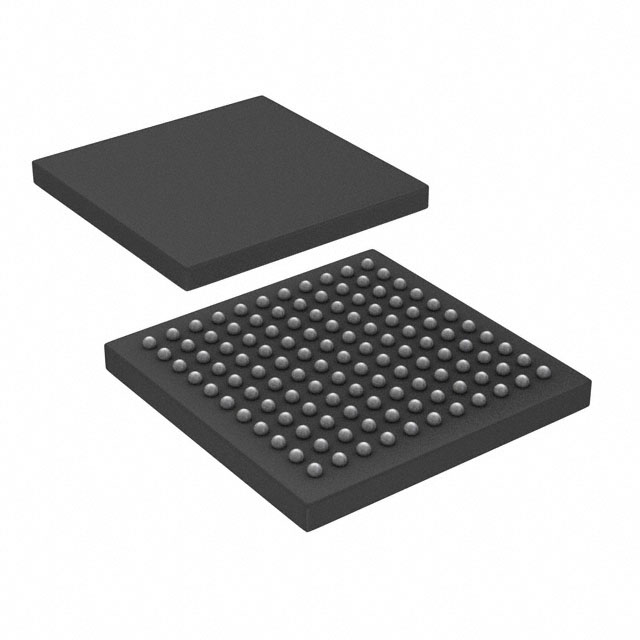

AT91FR40162SB-CU IC MCU 16/32BIT 2MB FLASH 121BGA. ARM7TDMI core, 75MHz clock speed, 256KB SRAM, 32 I/O lines.
Mfr Part #:

AT91FR40162SB-CU

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
IC MCU 16/32BIT 2MB FLASH 121BGA. ARM7TDMI core, 75MHz clock speed, 256KB SRAM, 32 I/O lines.
✓ Total Stock: 35,000 pcs

AT91FR40162SB-CU Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
35,000 pcs
On Request
35000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AT91FR40162SB-CU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Lead Style
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

AT91FR40162SB-CU Description

Short technical summary and product information.

The AT91FR40162SB-CU is a 16/32-bit microcontroller from Microchip Technology based on the ARM7TDMI processor core. It features 2MB of on-chip Flash memory and 256KB of SRAM, operating at a maximum clock speed of 75MHz. The device supports a core supply voltage of 1.65V to 1.95V and I/O supply of 2.7V to 3.6V, with an operating temperature range of -40°C to 85°C.



This microcontroller includes 32 programmable I/O lines, an external bus interface (EBI/EMI), two USARTs, a three-channel 16-bit timer/counter, and a watchdog timer. It is designed for fully static operation and offers advanced power-saving features. The AT91FR40162SB-CU is available in a 121-ball TFBGA package measuring 10x10x1.26mm with 0.8mm ball pitch, suitable for surface mount assembly.



Typical applications include industrial control, embedded systems, and communication interfaces requiring a balance of performance and low power consumption. The ARM7TDMI core provides high-performance 32-bit RISC architecture with a 16-bit instruction set for code density.

AT91FR40162SB-CU Quick Information

Product Type: Microcontroller
Series: AT91FR40162SB
Canonical Name: AT91FR40162SB-CU
Subcategory: ARM7 Microcontrollers

AT91FR40162SB-CU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

AT91FR40162SB-CU Features

  • ARM7TDMI 32-bit RISC processor core.
  • 2MB Flash and 256KB SRAM memory.
  • 75MHz maximum clock speed.
  • 121-ball BGA package, 10x10mm.
  • Operating temperature range -40°C to 85°C.

AT91FR40162SB-CU Applications

  • Used in industrial control systems.
  • Suitable for embedded communication interfaces.
  • Ideal for low-power portable devices.
  • Applied in automotive electronics.

AT91FR40162SB-CU FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the AT91FR40162SB-CU?

Core supply voltage is 1.65V to 1.95V; I/O supply voltage is 2.7V to 3.6V.

What package does the AT91FR40162SB-CU come in?

121-ball TFBGA package, 10x10x1.26mm with 0.8mm ball pitch.

What is the operating temperature range?

-40°C to 85°C (TA).

Is the AT91FR40162SB-CU RoHS compliant?

Listed as RoHS3 Compliant, but this is unverified. Verify with manufacturer.

What is the maximum clock speed?

75MHz at VDDCORE=1.8V, 85°C.

How much Flash and SRAM does it have?

2MB Flash (1M x 16) and 256KB SRAM (256K x 8).

What processor core does it use?

ARM7TDMI 16/32-bit RISC core.
