Mfr Part #:

AT13-18PA-BM04GY

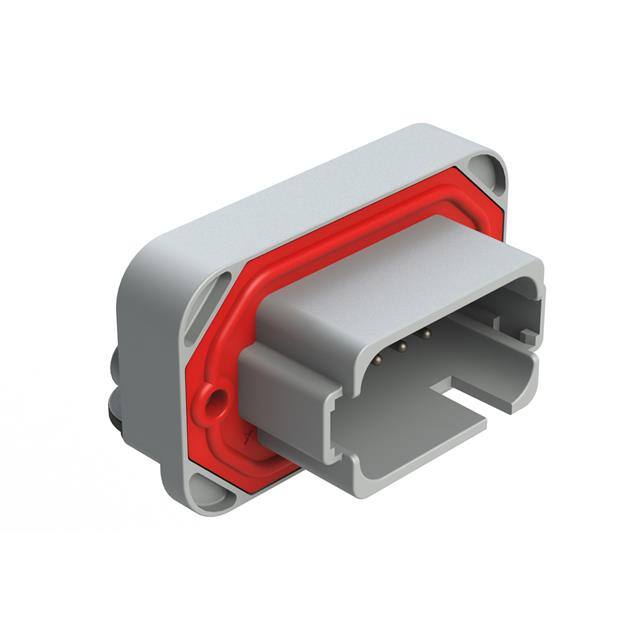

Name: AT13-18PA-BM04GY
Brand: Amphenol Sine Systems
SKU: AT13-18PA-BM04GY

Description:

18 POSITION, RIGHT ANGLE FLANGE

Stock on Request

AT13-18PA-BM04GY Description

Short technical summary and product information.

18 POSITION, RIGHT ANGLE FLANGE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Amphenol Sine Systems
Connector Type	Receptacle
Contact Finish	Tin
Contact Length	0.114" (2.90mm)
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13A
Fastening Type	Latch Holder
Features	Board Guide, Sealed
Ingress Protection	IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Insulation Color	Gray
Insulation Height	1.390" (35.30mm)
Insulation Material	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature	-55°C ~ 125°C
Pitch	0.185" (4.70mm)
Row Spacing	0.193" (4.90mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250V
